HAKKO CORPORATION
- Lead cutter for radial components
- Lead cutting operation for taped components can be continuously performed using the same size settings once they are made
- Possible to use together with 152B (motor drive)

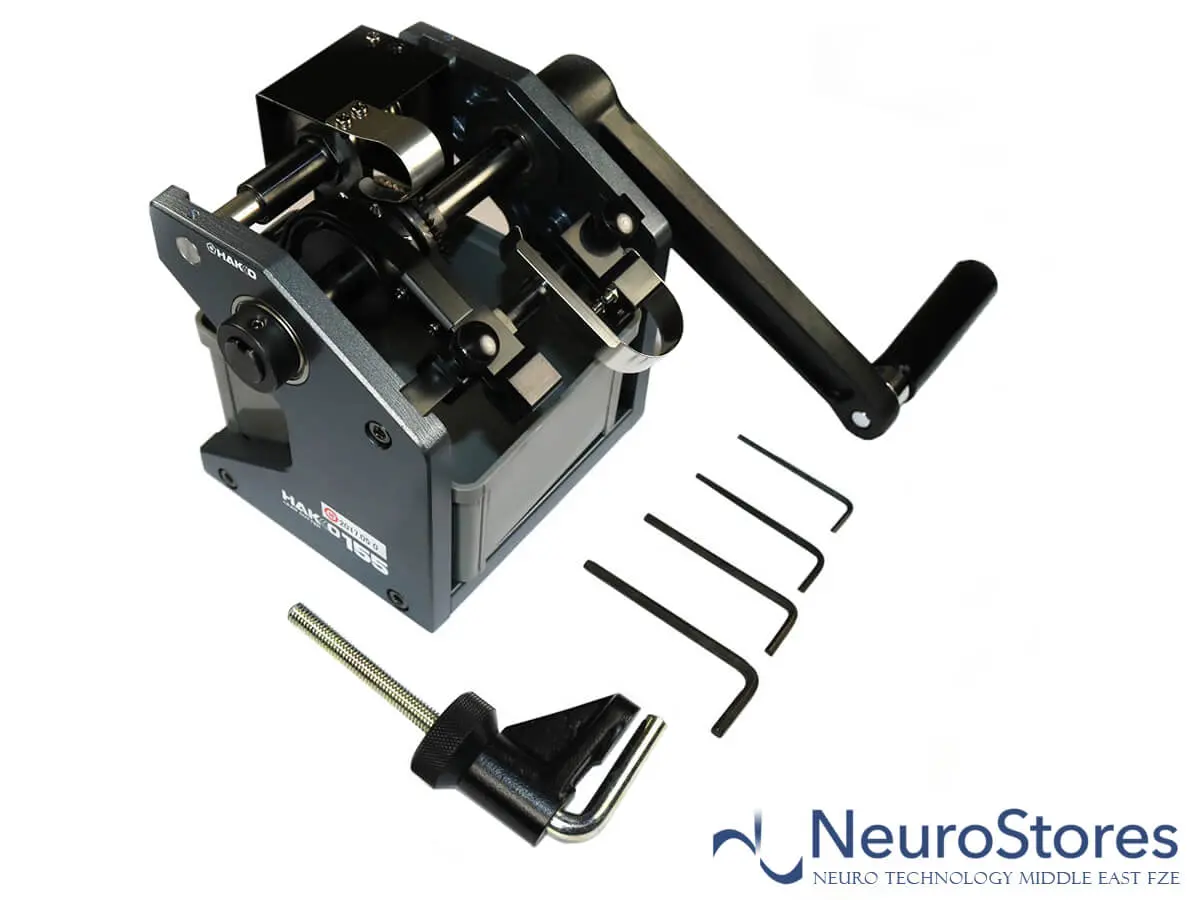

Hakko 155-1
HAKKO CORPORATION
- Lead cutter for radial components
- Lead cutting operation for taped components can be continuously performed using the same size settings once they are made
- Possible to use together with 152B (motor drive)
| Model No. | 155-1 | 155-2 |
|---|---|---|
| Max.diameter of lead wire | Φ0.8mm (MAX.) | |
| Lead wire | For annealed copper lead wire only | |
| Max. processing part size | Φ12.5×25mm (MAX.) | Φ15×25mm (MAX.) |
| Feed hole pitch | 12.7mm | 15mm |
| Lead pitch | 5.0mm,2.5mm | 5.0mm |
| Min. processing size | 1.5mm from taping end, 2.0mm from component end | |
| Dimensions | 110(W)×140(H)×125(D)mm | |
| Weight | 1.7kg | |
* When shipped, the unit is set for components with a lead pitch of 5.0mm.
* Square lead wire is not adapted.
* Weight (w/ handle, clamp)
