HAKKO CORPORATION
- Battery-powered suction pick-up tool with built-in vacuum pump
- Max. pick-up suction capacity is 120gf
- Antistatic material is used

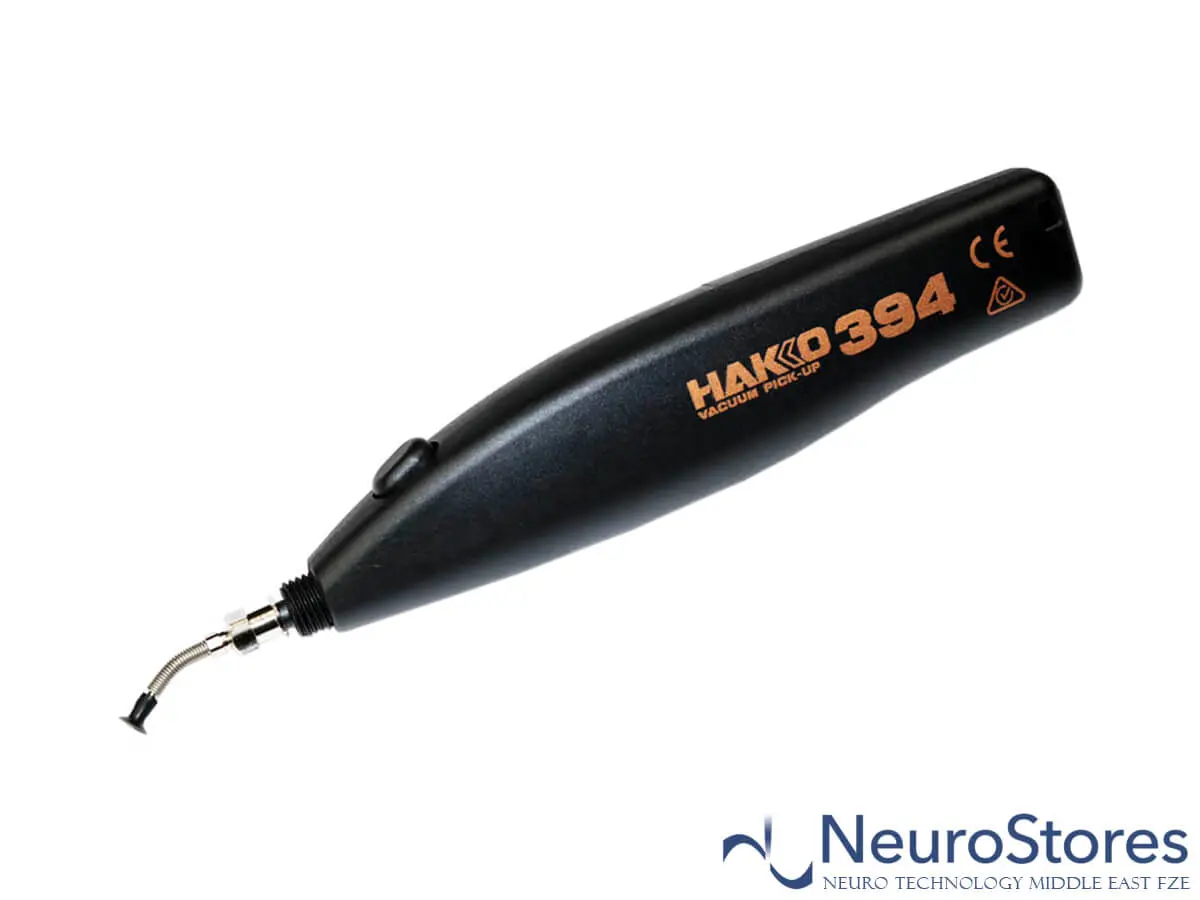

Hakko 394
HAKKO CORPORATION
- Battery-powered suction pick-up tool with built-in vacuum pump
- Max. pick-up suction capacity is 120gf
- Antistatic material is used
| Model No. | 394 |
|---|---|
| Power supply | Two size AAA batteries |
| Pad | Conductive silicone rubber |
| Battery life | Approx. 30,000 suction cycles (with alkaline batteries) |
| Suction capacity | 120gf (with padΦ10mm) |
| Dimensions | 130(W)×29(H)×22(D)mm |
| Weight | 43g |
* Weight (w/o batteries, nozzle, pad)
Service life of battery
| Pickup repetition limit *1 | Continuous pickup time *2 |
|---|---|
| Approx, 30,000 pickup times ( With alkaline batteries ) | Approx, 15 hours |
| *1. 26 mm x 26 mm QFP is pickup for 2 seconds using a 10 mm dia pad and then released for 1 second. This cycle is repeated cominuously unit the QFP is no longer picked up. *2. This is the time period from the moment 26 mm x 26 mm QFP starts being pickup using a 10 mm dia pad to the moment the QFP drops. |
|
