HAKKO CORPORATION

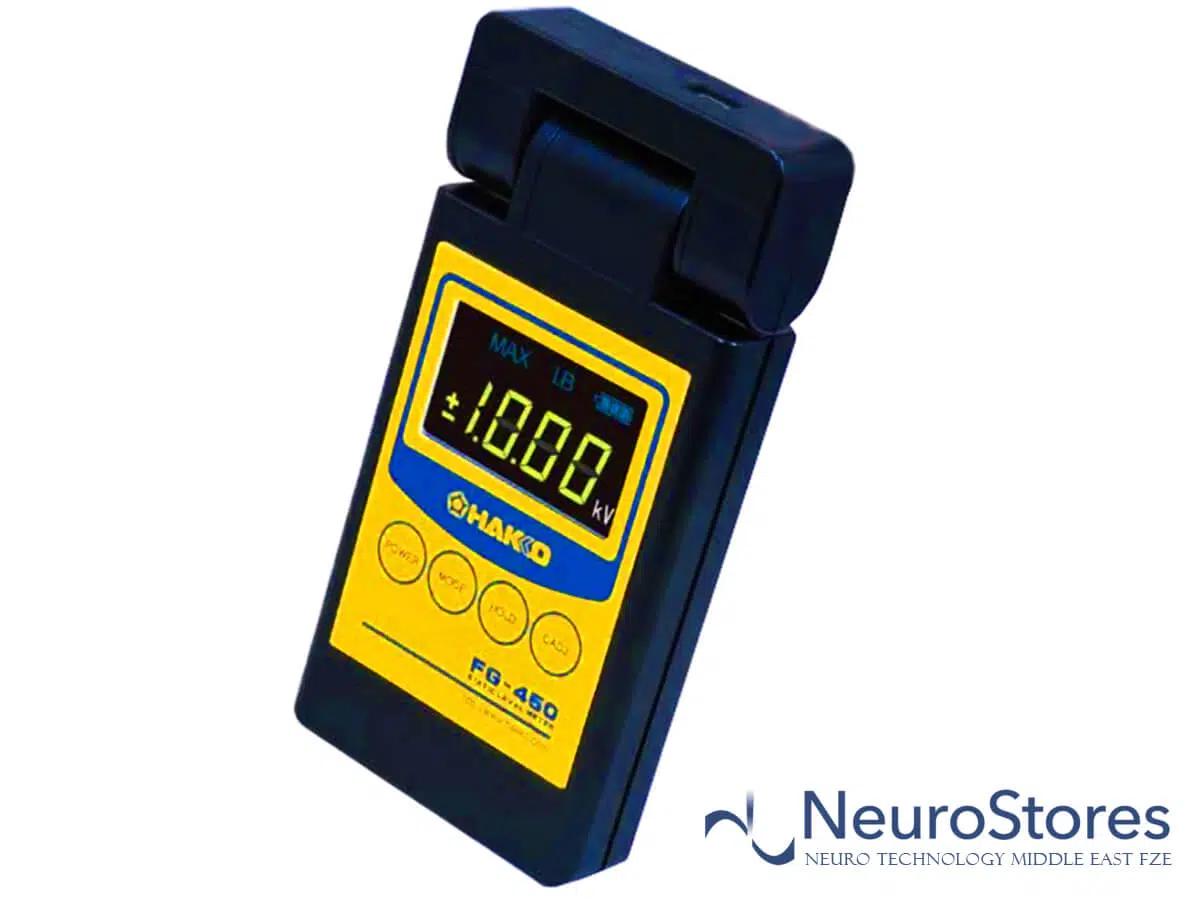

Portable static level meter for the measurement of electric potential for films and plastic objects
Useful for the check of electric potential measurement in production lines
Also suitable for the operation test of static eliminators and static potential check for computers
| Model No. | FG450-03 |
|---|---|
| Power supply | 006P 9V dry battery |
| Measurable potential range | Normal mode : 0.00 to ±19.99kV (resolution : 0.01kV) Ion balance mode : 0.000 to ±1.999kV (resolution : 0.001kV) |
| Signal detection method | Oscillating chopper method |
| Display refresh frequency | 0.5seconds |
| Measurement precision | ±10% of reading ±2 digit |
| Continuous operating limit | Approx. 10hour (with alkaline battery) |
| Measurement distance | 30mm (between object being measured and sensor) |
| Measurement distance adjustment | Red LED beam focusing method |
| Sensor head rotation angle | 180º (in increments of 45º) |
| Display | LCD display with built-in backlight |
| Polarity display | Positive polarity/negative polarity display |
| Mode switching | Ion balance/static electricity measurement modes |
| Battery check | Remaining charge displayed in display panel |
| Operating environment | 0 to 40ºC, 20 to 70%RH (without condensation) |
| Dimensions | 68(W)×138(H)×22(D)mm |
| Weight | 160g |
* Weight (including battery)
