Hakko FM-2029 Hot Air Handpiece, Conversion Kit

HAKKO CORPORATION

LEAD FREE ESD SAFE

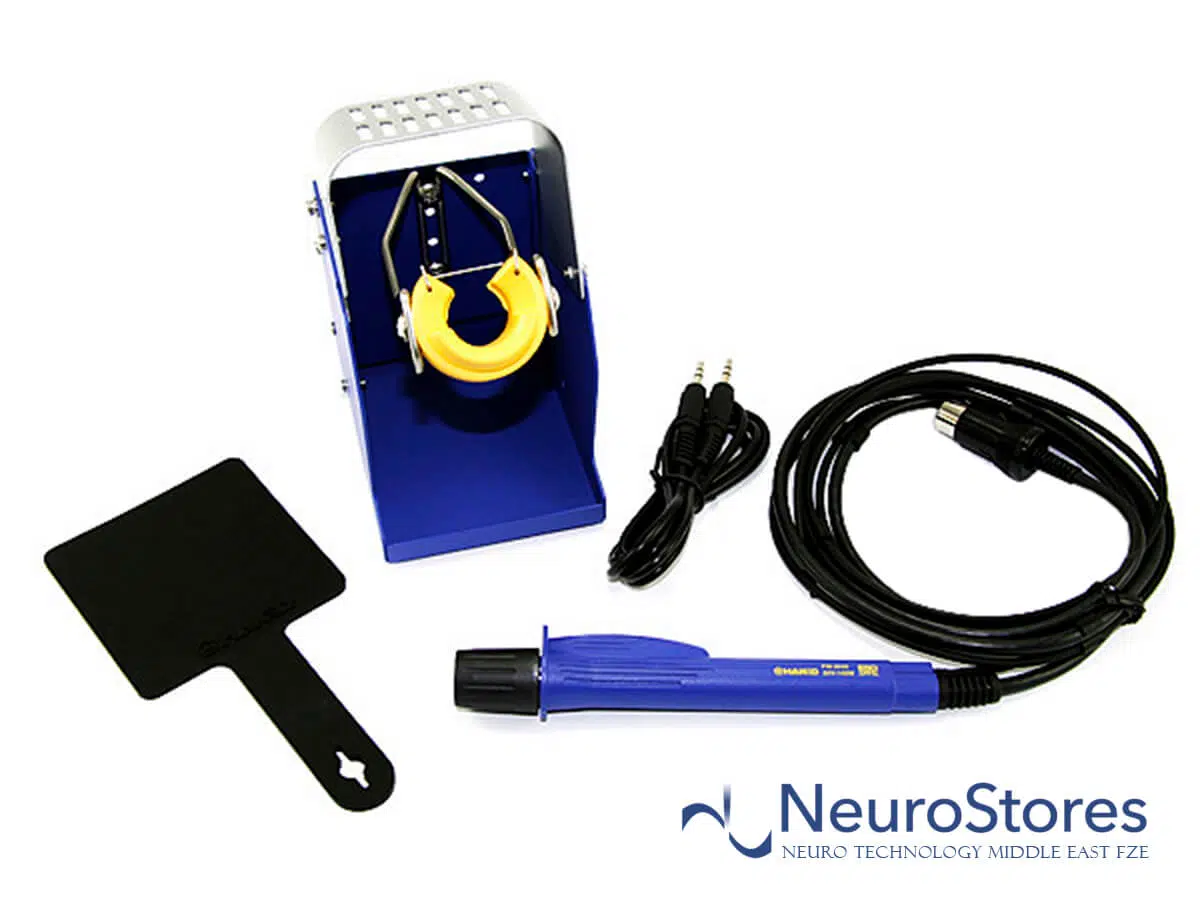

Hakko FM-2029 Conversion Kit including with Main unit, Handpiece holder, Connecting cable, Heat resistant pad, Instruction manual.

  • Single-nozzle hot air handpiece designed exclusively for HAKKO FM-206
  • The slim grip is ideal for work in narrow spaces
  • Hand switch enables easy ON/OFF operation

Features

Hot air handpiece for use with FM-206, a compact multi-rework station that enables simultaneous use of three handpieces.

HAKKO FM-206

>> HAKKO FM-206

Connect HAKKO FM-206 and the handpiece holder with a relay cord to turn off the air automatically when the handpiece is placed in the handpiece holder.
* Turn on the air again by operating the hand switch. The air does not turn on automatically when the handpiece is picked from the handpiece holder. Example of connection of FM-206 and FM-2029 handpiece holder Use external air to enable N2functions.
* Requires a flow meter and nitrogen gas generator.

The composite-type nozzle provides excellent thermal recovery and easy one-touch nozzle replacement. Heater replacement, which used to be difficult with the hot air-type, is no longer required. Nozzle replacement 1 Nozzle replacement 2

Choose from four optional nozzles for different size work. Replacement nozzles

>> See here for details on nozzle sizes.

Model No.FM2029-01FM2029-02
Power consumption140W (24V)
Temperature range100 to 550ºC
Nozzle to ground resistance<2Ω
Nozzle to ground potential<2mV
Heating elementComposite heater
Cord length1.2m
Total length232mm (with Φ4.0mm nozzle)
Weight50g (with Φ4.0mm nozzle)

* Total length and weight (w/o cord, tube)

Model No.Packing List
FM2029-01Main unit, Handpiece holder, Connecting cable, Heat resistant pad, Instruction manual

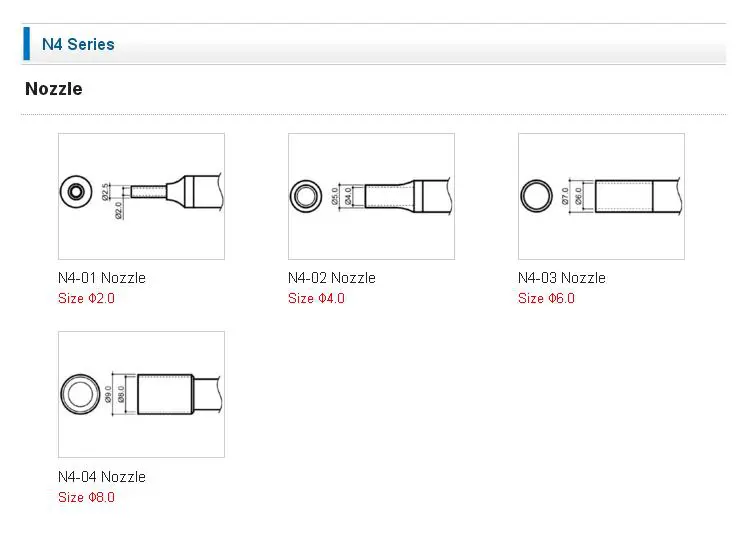

>> N4 Series Nozzles:
N4-01Size Φ2.0
N4-02Size Φ4.0
N4-03Size Φ6.0
N4-04Size Φ8.0

>>Click here for Replacement Parts and Option.
