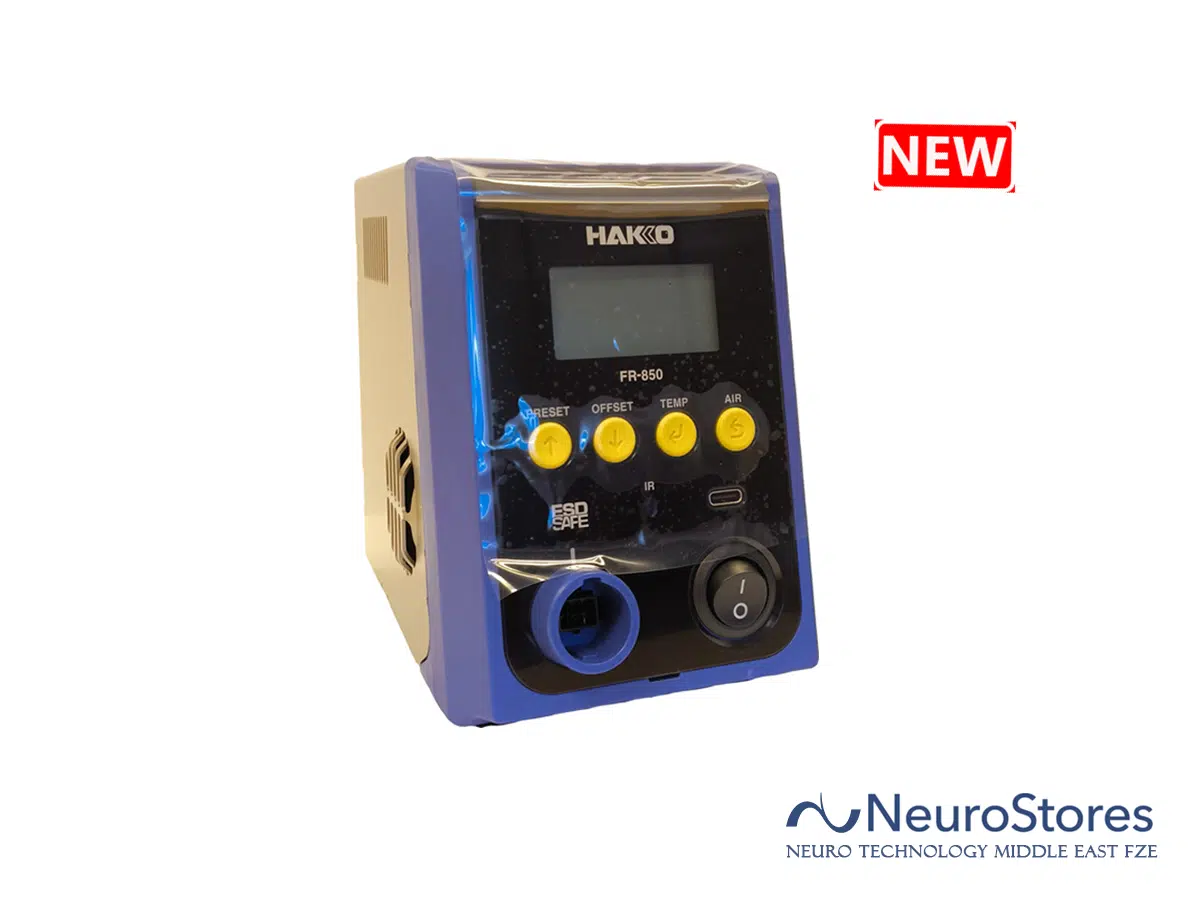

Hakko FR-850: Micro Hot Air with a wide temperature range and fine airflow control
-Ideal for precise rework on high thermal mass PWBs and delicate miniature components
- Micro hot air is effective for miniature components on high heat-capacity PWBs
- Offers a wide temperature range and fine airflow control
- Six nozzle types for a wide range of applications
Enables precise rework of densely packed SMDs without affecting surrounding components
By connecting the station to a PC, the set temperature of the hot air, calibration/correction, and the hot air temperature history during operation can be recorded on the PC.
Features
Hot Air ON/OFF at Your Fingertips
Control hot air ON/OFF with the iron unit button.
Ideal for precision work under a microscope. Enhances both efficiency and accuracy in micro-scale operations.
Wide top-mounted button is also for hot air ON/OFF control.
Operating status is instantly visible with LED indicator on top.
Provides straight and bent nozzles.
The bent nozzle efficiently directs hot air at components during microscope-assisted operations. Cartridge-style design enables quick and tool-less nozzle replacement
55% smaller footprint compared to conventional models. Ideal for space-saving in work environments.
All settings can be easily adjusted with just four buttons.
Equipped with an auto-cooling function that activates simply by placing the iron on the stand.
One-touch nozzle attachment and removal ensures safe and easy handling. Capable of storing up to four nozzles.
Hot air temperature measurement is possible by installing the A1557 sensor on the stand.
Automatic calibration and correction can be completed by transmitting the measurement data from the thermometer (FG-100B/FG-101B) to the main unit, via infrared.
By connecting the station to a PC, the set temperature of the hot air, calibration/correction, and the hot air temperature history during operation can be recorded on the PC. Enables management with zero human error.
The dedicated software is available for download on the Hakko website.
Click here to download the FR-850 software.
To download the software, both “user registration” and “product registration” are required.
Click here for “user registration” and “product registration”.
Auto shutoff function reduces unnecessary power consumption and minimize equipment wear.
| Model No. | FR850-44 |
|---|---|
| Power consumption | 112 W |
| Temperature range | 50 to 600℃ |
| Station | |
|---|---|
| Power consumption | 7 W |
| Air flow | 1.5 to 5 L/min. |
| Dimensions | 98 (W) × 140 (H) × 165 (D) mm |
| Weight | 1.8 kg |
| Handpiece | |
|---|---|
| Power consumption | 105 W (24 V) |
| Nozzle to ground resistance | ＜2 Ω |
| Nozzle to ground potential | ＜2 mV |
| Heating element | Composite heater |
| Cord length | 1.2 m |
| Total length | 227 mm (with NA01-C20 nozzle) |
| Weight | 70 g (with NA01-C20 nozzle) |
- The airflow values are approximate. The airflow range may vary depending on the nozzle attached.
- Station
- Handpiece (FR-8501)
- Iron holder (FH-225)
- USB cable
- Power cord
- Instruction manual
- In FR-850, no nozzle is included. Please purchase a nozzle separately.
NA01 Series
The dedicated software is available for download on our website.
Click here to download the FR-850 software.
To download the software, both “user registration” and “product registration” are required.
Click here for “user registration” and “product registration”.
| Replacement | Part No. | Name | Specifications |
|---|---|---|---|
 | FR8501-81 | FR-8501 | 105 W (24 V) |
 | B5334 | Heat insulation sleeve | |
 | FH225-816 | Iron holder | |
 | B5385 | USB Cable |
| Option | Part No. | Name | Specifications |
|---|---|---|---|
 | FG100B-54 | FG-100B | |
 | FG101B-22 | FG-101B | |
 | A1557 | Sensor B |
