HAKKO CORPORATION
- Reduce time for tip cleaning and increase efficiency in the soldering process
Quick tip cleaning
As the infrared sensor detects a tip being inserted, the brushes start rotating automatically to clean a tip quickly.
Features

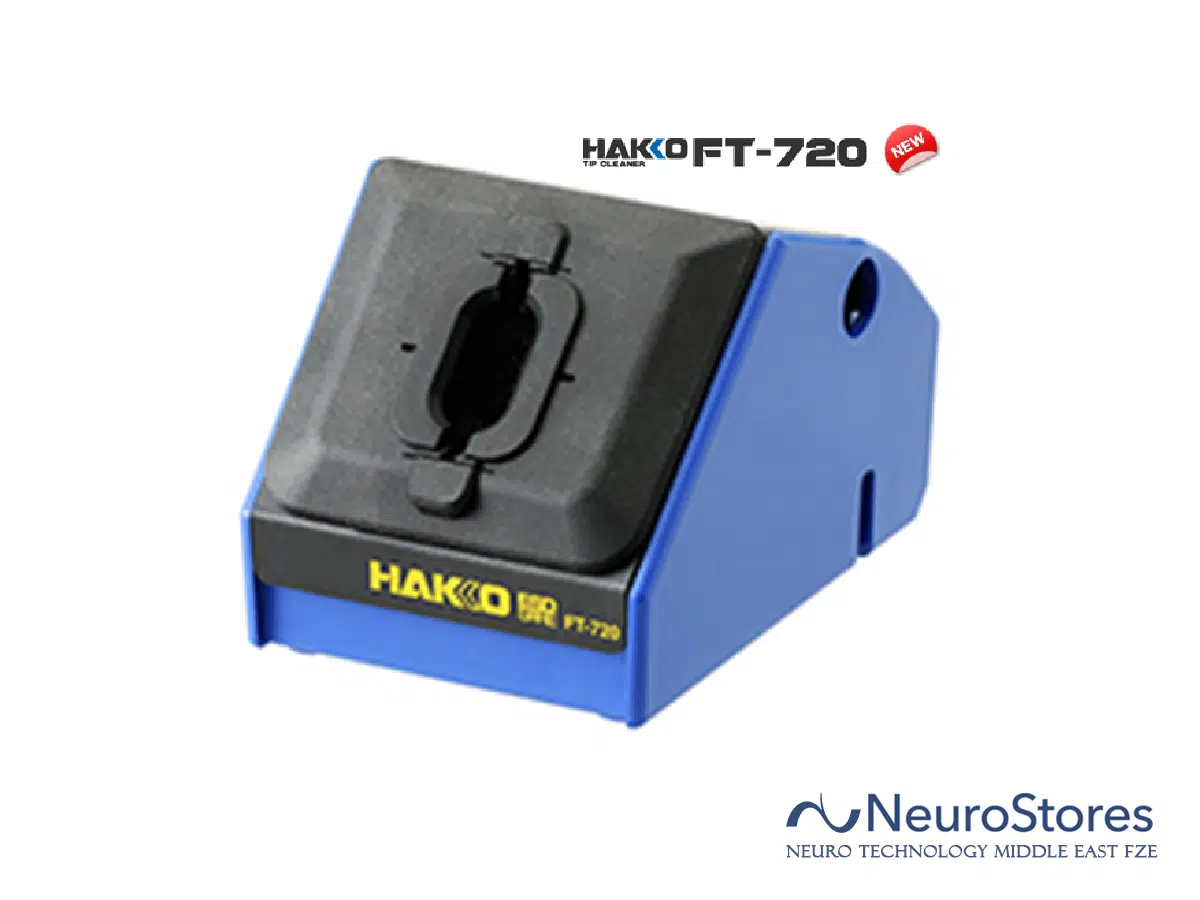

FT-720 surely and quickly cleans a variety of tip shapes, and also a tip even having the guide pipe assembly on a handpiece.
FT-720 can help increase productivity by shortening the cleaning time and minimizing the tip temperature drop with no use of water.
Comparison of the tip temperature drop
The narrow opening of the P.W.B. cover reduces the scattering of solder balls.
FT-720 helps keep the work environment nice and clean. (FOD prevention)
In addition to the standard brush, two more optional brushes are available (sold separately) for different purposes.
Tip cleaner FT-710
FT-710 Tip cleaner that prevents scattering of solder balls
Insertion of a tip into FT-710 turns on the switch to start tip cleaning with brushes. >> FT-710
FT-700 Tip polisher that removes oxides from a tip
FT-700 removes oxides and carbides from a tip without damaging the tip. >> FT-700
| Model No. | FT-720 |
|---|---|
| Rating | 24 DCV 140 mA |
| Brush rotational speed | 1670rpm |
| Dimensions | 67(W)×63(H)×94(D)mm |
| Weight | 200g |
| AC Adapter | |
| Output voltage | 24 DCV |
Compatible irons and tips with FT-720
*Some tips are not compatible with FT-720. Please, refer to the remarks.
| Soldering station | Handpiece | Soldering tip | Remarks |
| FX-100 | FX-1001 | T31 | All the tips are compatible with FT-720. |
| FX-1002 | T35 | ||
| FN-1010 | FN-1101 | T36 | All the tips are compatible with FT-720. |
| FN-1102 | |||
| FX-951 | FM-2028 | T12 | *Shapes of “Quad”, “Tunnel” and “Spatula” are not compatible with FT-720. |
| FM-2026 | T13 | All the tips are compatible with FT-720. | |
| FM-2032 | T30 | All the tips are compatible with FT-720. | |
| FX-950 FX-952 |
FM-2028 | T12 | *Shapes of “Quad”, “Tunnel” and “Spatula” are not compatible with FT-720. |
| FM-2026 | T13 | All the tips are compatible with FT-720. | |
| FX-801 | FX-8002 | T33 | *Only “slim type” tips are compatible with FT-720. |
| FX-8003 | |||
| FX-838 | FX-8301 | T20 | All the tips are compatible with FT-720. |
| FX-8302 | |||
| FM-203 FM-206 |
FM-2027 | T12 | *Shapes of “Quad”, “Tunnel” and “Spatula” are not compatible with FT-720. |
| FM-2026 | T13 | All the tips are compatible with FT-720. | |
| FM-2030 | T22 | All the tips are compatible with FT-720. | |
| FM-2031 | |||
| FM-2032 | T30 | All the tips are compatible with FT-720. | |
| FX-888D FX-889 FR-701 FR-702 |
FX-8801 | T18 | All the tips are compatible with FT-720. |
| FX-8802 | |||
| FX-8803 | |||
| FX-8805 | T19 | ||
| FX-600 | ― | T18 | All the tips are compatible with FT-720. |
| FX-601 | ― | T19 |
Model No. FT-720
1. Unit (with adjuster),
2. AC adapter,
3. Instruction manual
*Some soldering irons and tips are not compatible with FT-720. Please, make sure the compatible irons and tips in the specifications.
*To clean too big tips, the opening needs to be wider by removing the adjuster. The removed adjuster can be stored inside the unit.
Replacement:
A5063 Cleaning brush C (fluoroplastic brush, qty 2)
A5060 Front cover w/sensor cover
A5061 Adjuster
A5062 Sensor cover qty 10
Option:
A1566 Cleaning brush A (plastic brush, qty 2)
A1567 Cleaning brush B (metal brush, qty 2)
