HAKKO CORPORATION

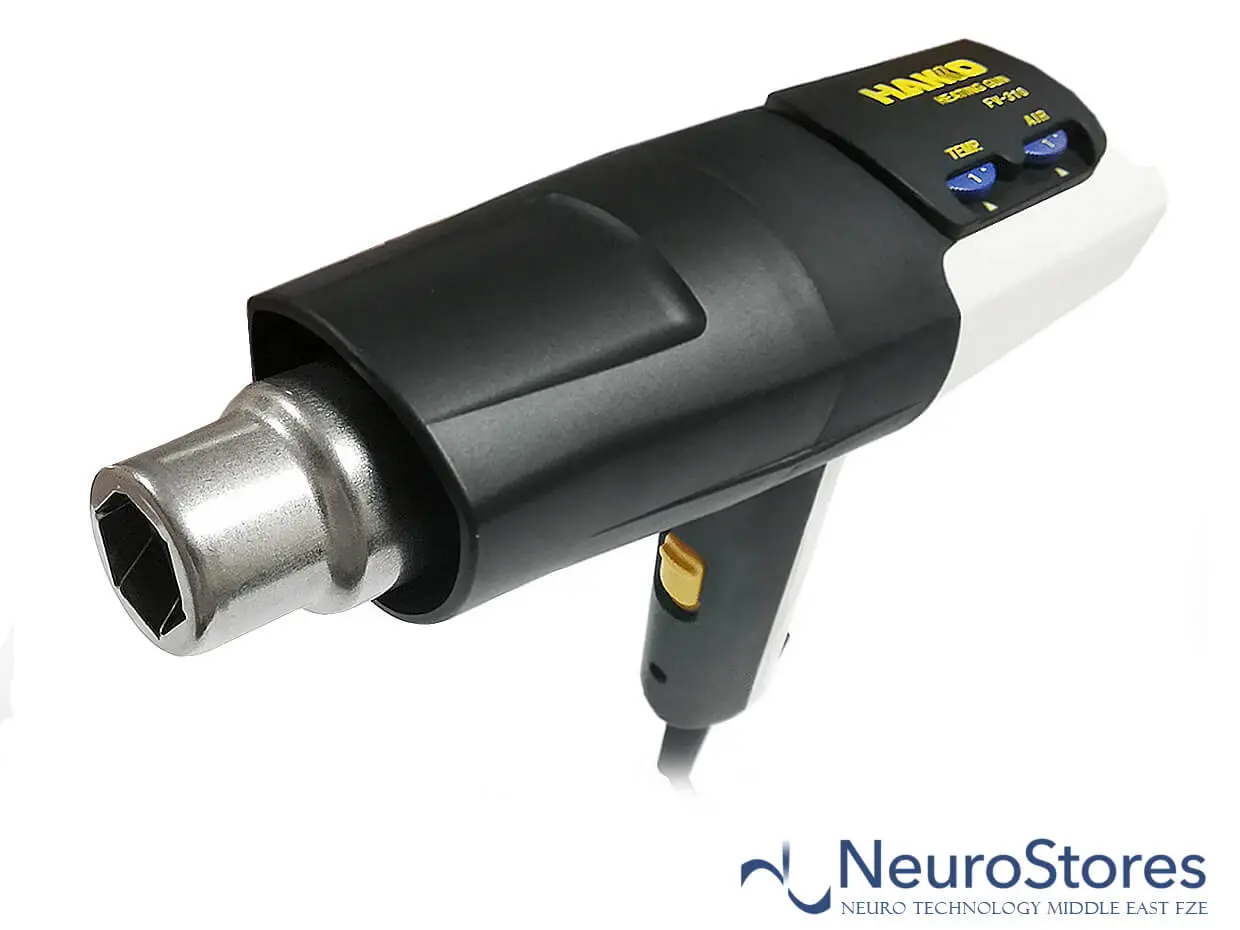

Hakko FV-310 heating gun is a Powerful & Fine. The new heating gun with stepless control for the maximum temperature increased by 80°C and maximum airflow increased by 25% from the conventional models.
- Hot air blower with variable temperature and airflow
- Stepless control on temperature and airflow for optimal settings
- High performance and long life heating element
The new heating gun with stepless control for the maximum temperature increased by 80°C and maximum airflow increased by 25% from the conventional models.
| Stepless control on temperature and airflow for optimal settings
Fine control of temperature and air flow for a variety of applications contributes to improvement of work efficiency.
Temperature distribution chart
- The temperature and airflow volume are reference values;
these values are not guaranteed.
| High performance and long life heating element
Use of ceramic insulator for greater heat storage and heating performance.
| Easy replacement of heating element
It requires only a screwdriver to replace heating element.
| Safety design for fall-prevention during hands-free operation
Anti-slip rubbers on the back improve stability and safety during hands-free operation.
Slide button (switch), temperature and air flow knobs are positioned at where it is easy to operate even during hands-free operation.
Use of stand, an option part, secures stability for hands-free application.
| A carrying case as standard
It can store optional parts to carry together with unit.

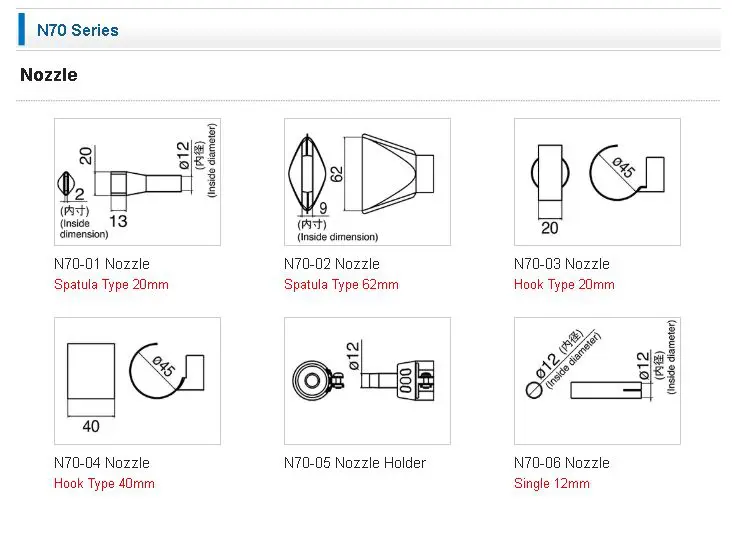

| Examples of use (Including optional parts)
Usage/Applications
1. Set the slide button (switch) to OFF and insert the plug of the power cord into an outlet.
* Use a power outlet rated at 12 A or greater for 110 V, 5 A or greater for 220 – 240 V.
2. Turn the slide button (switch) to “Ⅱ”. Hot air will come out of the pipe.
3. Turn the temperature/air flow control knobs to adjust temperature/air flow.
* The larger the number, the higher the temperature/air flow.
4. After use, turn the slide button (switch) to “Ⅰ” and allow the unit to cool down.
After use, allow it to cool down for at least 90 seconds.- Before storing the heating gun, allow it to cool down for at least 5 minutes.
| Model | FV310-10 |
|---|---|
| Power Consumption | 1000 Watts |
| Maximum Temperature* | 530 ° C (continuously variable from 50 to 530 ° C) |
| Air Velocity | 600 m / min. |
| Air Flow | 0.15 to 0.25 m 3 / min. |
| Dimensions** | 240 (W) x 190 (H) x 70 (D) mm |
| Weight** | 0.6 kg |
* Measured at the point 10mm from the pipe.
** Without cord.
- FV-310 Unit, Instruction manual
