HAKKO CORPORATION
Maximum temperature 540℃
- Equipped with a newly designed tip which has a high thermal capacity
- Suitable to solder chassis,large connector,transformer,etc. which require a large amount of heat
Features
Suitable to solder chassis,large connector,transformer.
T19 series soldering tips feature an redesigned appearance and internal structure that deliver improved heat conductivity. Use these soldering tips to achieve great heat recovery without increasing power consumption.
Test criteria
| Measurement method | A thermocouple is mounted on the tip and the tip temperatureis measured when soldering Φ1.6mm×5mm solder to paper phenol copper board once every 3 seconds. |
| Board | Paper phenol copper |
| Tip shape | Shape-5D |
| Solder | Lead-free solder ( Sn / Ag / Cu ), diameter: 1.6mm |
* FX-601 is set at the same temperature of 455 by measuring the actual temperature.

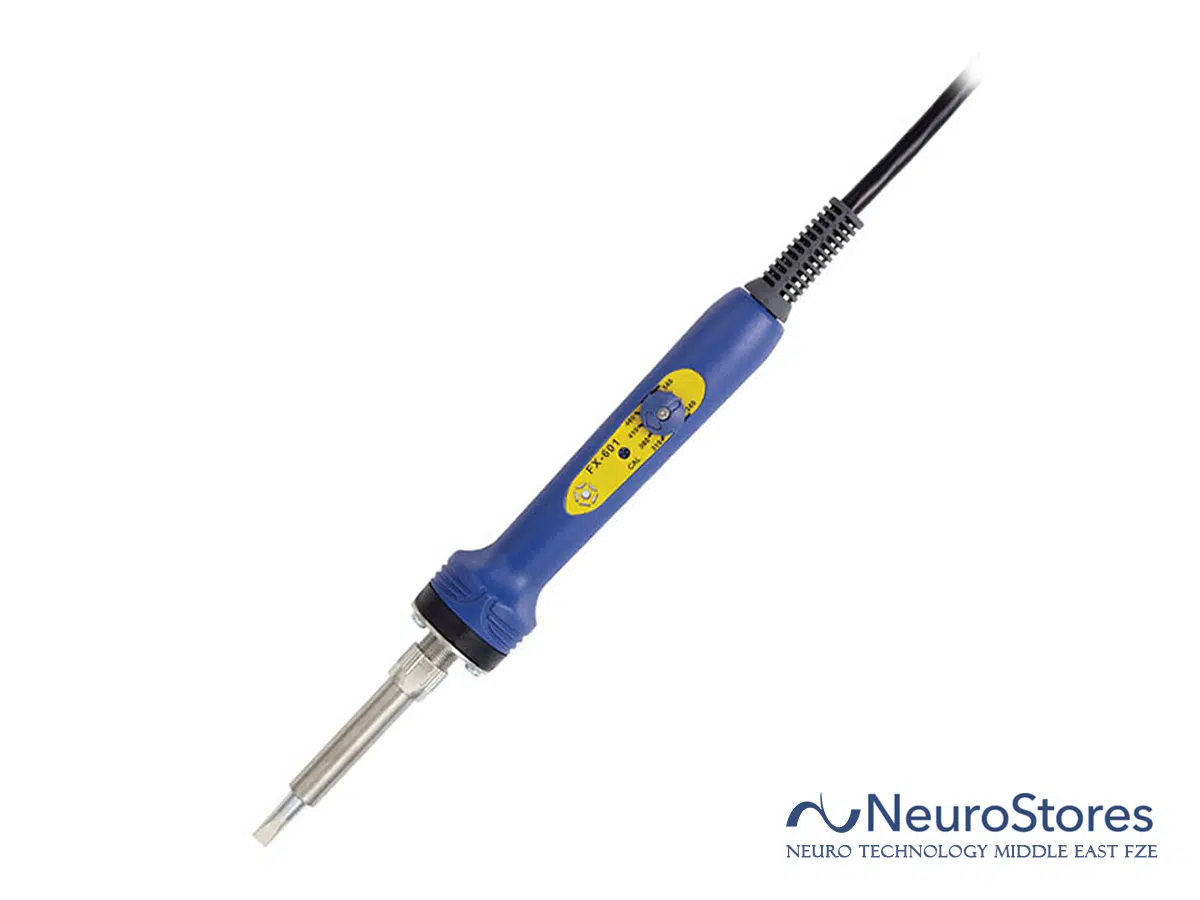

FX-601 has excellent heat recovery but is compact, light weight and well-balanced

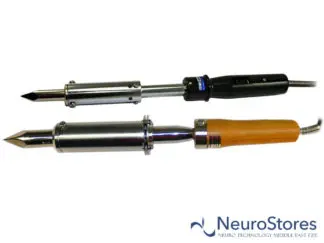

HAKKO FX-601 and HAKKO456
Comparing with the conventional heavy duty iron,
FX-601 is easy and simple to handle.
Features a temperature controller built into the grip.
Easily adjust the temperature with a simple turn of the knob.
* Accurate temperature control performed even outside the scale.
Reduce costs by converting to either model using interchangeable parts (Tip enclosure/Nut/Soldering Tip).
| Model No. | FX601-06 |
|---|---|
| Power consumption | AC100V：47W AC110V：56W AC120V：67W AC220V：42W AC230V：46W AC240V：50W |
| Temperature range | 240 to 540ºC |
| Temperature stability | ±1ºC at idle temperature |
| Tip to ground resistance | <2Ω |
| Tip to ground potential | <2mV |
| Heating element | Ceramic heater |
| Total length | 237mm (with 2B tip) |
| Weight | 68g (with 2B tip) |
* Total length and weight (w/o cord)
- HAKKO FX-601
- Lock key
- Instruction manual
T19 Series Tips:
| Shape BC/C | |
|---|---|
| T19-C3 | Shape-3C 3 x 18.5mm |
| T19-C4 | Shape-4C 4 x 18.5mm |
| T19-C65 | Shape-6.5C 6.5 x 15.5mm |
>> Click here for Replacement Parts and Option.
