HAKKO CORPORATION
- It generates Nitrogen gas at max. concentration of 99.9%
- It provides N2 gas by compressed air which does not need electric power supply.
- Large-capacity type accepts 2 soldering irons.

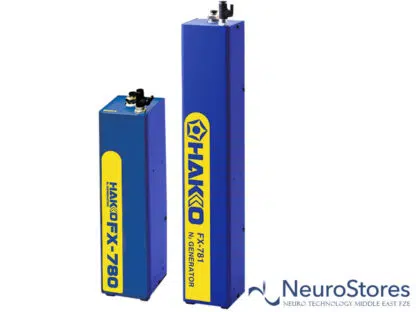

Hakko FX-780 N2 Generator Small type
HAKKO CORPORATION
- It generates Nitrogen gas at max. concentration of 99.9%
- It provides N2 gas by compressed air which does not need electric power supply.
- Large-capacity type accepts 2 soldering irons.
| Model No. | FX-780 | FX-781 |
|---|---|---|
| Air supply pressure | 0.3 to 0.7MPa | |
| Concentration of generated N2 | 99.9% (Max.) | |
| Amount of generated N2 | 1.5L/min. (When compressed air of 0.5MPa is supplied at 25ºC, the concentration of generated nitrogen is 98%.) | 2.4L/min. (When compressed air of 0.5MPa is supplied at 25ºC, the concentration of generated nitrogen is 98%.) |
| Dimensions | 73(W)×282(H)×71(L)mm | 73(W)×407(H)×71(L)mm |
| Weight | 1.5kg | 2kg |
* Dimensions (w/o sockets and valve)
* weight (w/o racks)
