It enables soldering in a shorter time and improves work efficiency.

It shows information such as set temperature, tip’s sensor temperature, and preset setting, clearly and widely.
The viewing angle is wide, and the high-brightness display provides high visibility.

A built-in sensor detects the handpiece in use and automatically switches channels. The unused handpiece stands by at the set temperature. And the operation delay does not occur after channel switching, achieving maximum power with a minimum size of station.

Automatic calibration and correction can be completed by transmitting the measurement data from the thermometer (FG-100B/FG-101B) to the main unit, via infrared.

By connecting the station to the PC, the tip set temperature, calibration/correction and the temperature history of the tip during operation are recorded on the PC, enabling management with zero human error.

The dedicated software is available for download on the Hakko website.
Click here to download the FX-973 software.

• To download the software, both “user registration” and “product registration” are required.
  Click here for “user registration” and “product registration”.

The built-in sensor of the tip inside makes it possible to the use auto-sleep and auto-shutoff functions without connecting the station and the iron holder, and it helps to lay out the station and iron holder freely in the working space.

Equipped with a New Composite Tip (*Patent Registered)

Designed to improve sensor sensitivity and efficiently transfer heat from the heater to the tip, ensuring stable tip temperature and enabling more precise and reliable soldering.

Well-balanced grip for excellent workability

The easy-to-use grip backs up the lineup of tips that can be used for all kinds of operations.
Slim cable design allows for easy handling.

140 W High-Power Heater – Optimized for Solder Removal on Multilayer PWBs

The heating power has almost 3 times increased!

^※1 Solder extraction on multilayer PWBs, once challenging, is now stress-free. Improvements in the heater and the use of ACF. ^※2 Ensure that the extracted solder is reliably conveyed to the filter pipe, reducing solder clogging.

• 1 Compared to our previous models
• 2 ACF (Anti Clogging Function) is a feature that automatically operates the pump for a certain number of seconds after releasing the trigger.

Suction activates just 0.2 seconds after peak vacuum is reached, enabling rapid and powerful extraction while minimizing residual solder.

9 different applications can be used without specifying the connecting port.

Soldering iron
FX-9701

N₂ Soldering iron
FX-9702
(option)

Micro soldering iron
FX-9703
(option)Micro N₂ soldering iron
FX-9704
(option)Hot tweezers
FX-9705
(option)Micro hot tweezers
FX-9706
(option)Heavy-duty soldering iron
FX-9707
(option)Heavy-duty N₂ soldering iron
FX-9708
(option)Desoldering tool
FR-4103

• Handpieces may not be used simultaneously depending on the conditions. Click here for more details.
  Can handpieces be used on all ports of the FX-973 simultaneously?

Model No.	FX973-**
Power consumption	400 W
Temperature range	50 to 450℃ With heavy-duty soldering iron connected: 50 to 500℃ With desoldering tool connected: 330 to 450℃
Temperature stability	±3℃ (At idle temperature) With heavy-duty soldering iron and desoldering tool connected: ±5℃ (At idle temperature)

Station
Output voltage	AC 24 V
Vacuum generator	Vacuum pump, double cylinder type
Vacuum pressure (max.)	80 kPa (600 mmHg)
Suction flow	15 L/min.
Dimensions	158 (W) × 135 (H) × 254 (D) mm
Weight	5.3 kg

Handpiece (FX-9701 soldering iron)
Power consumption	95 W (24 V)
Tip to ground resistance	＜2 Ω
Tip to ground potential	＜2 mV
Heating element	Composite heater
Cord length	1.2 m
Total length	206 mm (with T39-D24 tip)
Weight	31 g (with T39-D24 tip)

Handpiece (FR-4103 desoldering tool)
Power consumption	140 W (24 V)
Nozzle to ground resistance	< 2 Ω
Nozzle to ground potential	< 2 mV
Heating element	Composite heater
Standard nozzle	1.0 mm dia. S type (No. N61-05)
Cord length	1.2 m
Total length	168 mm (with N61-05 nozzle)
Weight	190 g (with N61-05 nozzle)

• The suction flow is measured at the filter case suction port of station.
• Total length and weight are measured without cord and hose.

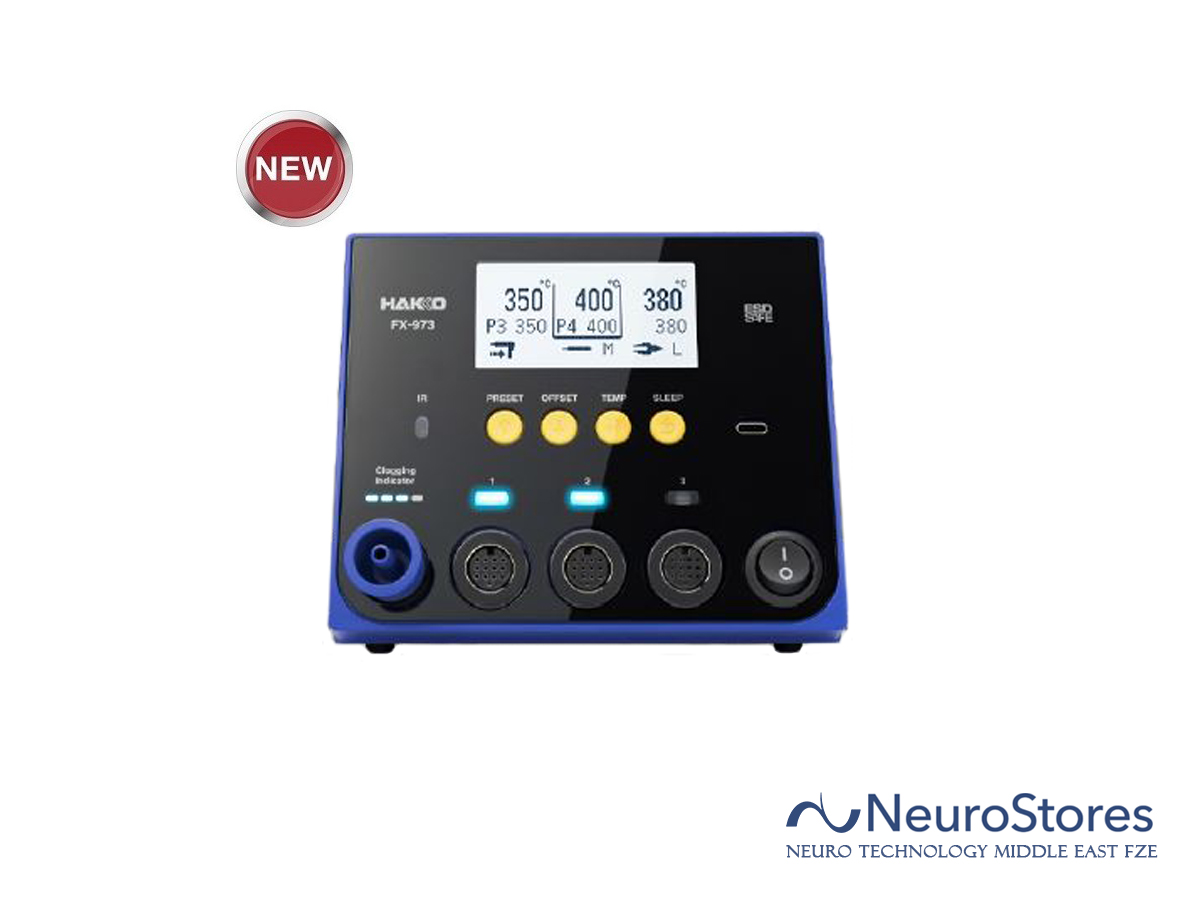

• Station FX-973
• Handpiece (FX-9701)
• Iron holder (FH-215, with cleaning sponge and wire)
• Handpiece (FR-4103)
• Iron holder (FH-410, with cleaning wire)
• Tool box (Cleaning pin for 1.0 mm dia., Cleaning pin for heater, Cleaning drill for 1.0 mm dia., Nozzle wrench, Filter [qty2], Ceramic paper filter [qty 4])
• Color band (green) [qty 2]
• Color band (orange) [qty 2]
• USB cable
• Power cord
• Instruction manual

In FX-971, no soldering tip is included. Please purchase a “T39 Series” soldering tip separately.

T39 Series

|| Shape B

  T39-B02 Shape-0.2B
  T39-B05 Shape-0.5B
  T39-B07 Shape-0.7B
  T39-BL02 Shape-0.2BL
  T39-BLL02 Shape-0.2BLL
  T39-BS02 Shape-0.2BS
  T39-BS03 Shape-0.3BS

|| Shape BC

  T39-BC1020 Shape-BC hor:1mm vrt:2mm
  T39-BC1530 Shape-BC hor:1.5mm vrt:3mm
  T39-BC2040 Shape-BC hor:2mm vrt:4mm
  T39-BC2535 Shape-BC hor:2.5mm vrt:3.5mm
  T39-BC3065 Shape-BC hor:3mm vrt:6.5mm
  T39-BC3545 Shape-BC hor:3.5mm vrt:4.5mm
  T39-BCF1020 Shape-BC hor:1mm vrt:2mm Tinned cut surface only
  T39-BCF2535 Shape-BC hor:2.5mm vrt:3.5mm Tinned cut surface only
  T39-BCF3545 Shape-BC hor:3.5mm vrt:4.5mm Tinned cut surface only

|| Shape BCM

  T39-BCM2535 Shape-BC hor:2.5mm vrt:3.5mm with indent
  T39-BCM3545 Shape-BC hor:3.5mm vrt:4.5mm with indent

|| Shape C

  T39-C1020 Shape-C hor:1mm vrt:2mm
  T39-C1025 Shape-C hor:1mm vrt:2.5mm
  T39-C4055 Shape-C hor:4mm vrt:5.5mm
  T39-CF4055 Shape-C hor:4mm vrt:5.5mm Tinned cut surface only

|| Shape D

  T39-D08 Shape-0.8D
  T39-D12 Shape-1.2D
  T39-D16 Shape-1.6D
  T39-D24 Shape-2.4D
  T39-D32 Shape-3.2D
  T39-D4 Shape-4D
  T39-D52 Shape-5.2D
  T39-DL32 Shape-3.2DL
  T39-DL4 Shape-4DL
  T39-DL52 Shape-5.2DL
  T39-DLS15 Shape-1.5DLS
  T39-DS24 Shape-2.4DS
  T39-DS32 Shape-3.2DS
  T39-DS4 Shape-4DS
  T39-DS52 Shape-5.2DS

|| Shape I

  T39-I02 Shape-0.2I
  T39-IL02 Shape-0.2IL
  T39-ILS015 Shape-0.15ILS

|| Shape J

  T39-J02 Shape-0.2J
  T39-JL02 Shape-0.2JL
  T39-JS02 Shape-0.2JS
  T39-JD08 Shape-0.8JD
  T39-JD14 Shape-1.4JD
  T39-JD16 Shape-1.6JD

|| Shape K

  T39-K Shape-K
  T39-KF Shape-KF
  T39-KL Shape-KL
  T39-KR Shape-KR
  T39-KU Shape-KU

|| with Slot

  T39-BCR1235 Shape-BC with slot in: 1.2mm out: 3.5mm

|| with V-groove

  T39-BCR12 Shape-1.2BC with V-groove
  T39-BCR16 Shape-1.6BC with V-groove
  T39-BCR24 Shape-2.4BC with V-groove
  T39-BCR32 Shape-3.2BC with V-groove
  T39-BCR4 Shape-4BC with V-groove
  T39-BCR52 Shape-5.2BC with V-groove
  T39-DR12 Shape-1.2D with V-groove
  T39-DR16 Shape-1.6D with V-groove
  T39-DR24 Shape-2.4D with V-groove
  T39-DR32 Shape-3.2D with V-groove
  T39-DR4 Shape-4D with V-groove
  T39-DR52 Shape-5.2D with V-groove

|| Spatula for SMD work

  T39-SP104 10.4mm
  T39-SP157 15.7mm
  T39-SP212 21.2mm

N61 Series

|| SS Type

  N61-01 Nozzle 0.6mm dia.
  N61-02 Nozzle 0.8mm dia.
  N61-03 Nozzle 1.0mm dia.

|| S Type

  N61-04 Nozzle 0.8mm dia.
  N61-05 Nozzle 1.0mm dia.
  N61-06 Nozzle 1.3mm dia.

|| Standard Type

  N61-07 Nozzle 0.8mm dia.
  N61-08 Nozzle 1.0mm dia.
  N61-09 Nozzle 1.3mm dia.
  N61-10 Nozzle 1.6mm dia.

|| Long Type

  N61-11 Nozzle 0.8mm dia.
  N61-12 Nozzle 1.0mm dia.
  N61-13 Nozzle 1.3mm dia.
  N61-14 Nozzle 1.6mm dia.

|| Oval Type

  N61-15 Nozzle 3.0mm x 1.0mm
  N61-16 Nozzle 4.0mm x 1.0mm

Replacement	Part No.	Name	Specifications
	B5348	Color band	Green, qty: 2
	B5388	Color band	Orange, qty: 2
	FX9701-81	Soldering iron FX-9701	95W（24V）
	FX9701-811	FX-9701 conversion kit	95W（24V）
	B5288	Nipple	With sealing valve
	B5289	Sealing valve
	FH215-81	Iron holder	With cleaning sponge & cleaning wire For FX-9701 and FX-9702
	A1561	Cleaning wire	For FH-215, FH-220 and FH-800
	A5038	Cleaning sponge	Yellow For FH-215, FH-220 and FH-800
	B5314	Tip removing attachment	For FH-215
	B5312	Iron receptacle	with knob ＆ retaining clip For FH-215 and FH-220
	B5313	Knob
	B2791	Retaining clip
	FR4103-81	Desoldering tool FR-4103	With 1.0mm dia. S nozzle, 140W（24V） * Replacement for FR4101-81
	A5055	Heating element	140W（24V） For FR-4103
	B5222	Enclosure pipe	For FR-4103
	B5185	Filter pipe assembly	With ceramic paper filter and related parts for FR-4103 * Replacement for B5105
	A5044	Ceramic paper filter-L	Qty: 10 for FR-4103 * Replacement for A1033
	B5104	Pre-filter	for FR-4103
	A5030	Front holder	for FR-4103
	A5031	Filter holder	for FR-4103
	B5194	Filter pipe	for FR-4103
	A5077	Filter	qty: 5
	B5386	Filter case cover with clip
	C5061	Tool box
	B1087	Cleaning pin	For 1.0mm dia. nozzle
	B1215	Cleaning pin	For heating element
	B1303	Cleaning drill	For 1.0mm dia. nozzle
	B1306	Drill holder	For 0.8mm/1.0mm dia. nozzle
	B1309	Drill	Qty:10 For 1.0mm dia. nozzle
	B5106	Nozzle wrench	for FR-4103

Option	Part No.	Name	Specifications
	FX9701-811	FX-9701 conversion kit	95W（24V）
	FX9702-811	FX-9702 conversion kit	95W（24V） For N2 soldering
	FX9703-811	FX-9703 conversion kit	70W（24V）
	FX9704-811	FX-9704 conversion kit	70W（24V） For N2 soldering
	FX9705-811	FX-9705 conversion kit	190W（24V）
	FX9706-811	FX-9706 conversion kit	140W（24V）
	FX9707-811	FX-9707 conversion kit	200W（24V）
	FX9708-811	FX-9708 conversion kit	200W（24V） For N2 soldering
	FH410-81	Iron holder	With cleaning sponge For FR-4101(Discontinued) and FR-4103
	FG-100B	FG-100B
	FG-101B	FG-101B
