OPTILIA
Product No: OP-209 012
HDMI: OP-219 012
- Working distance of 500mm
- 30x optical zoom
- Very fast and responsive auto-focus
- Laser pointer for precision
- Including boom stand and control unit

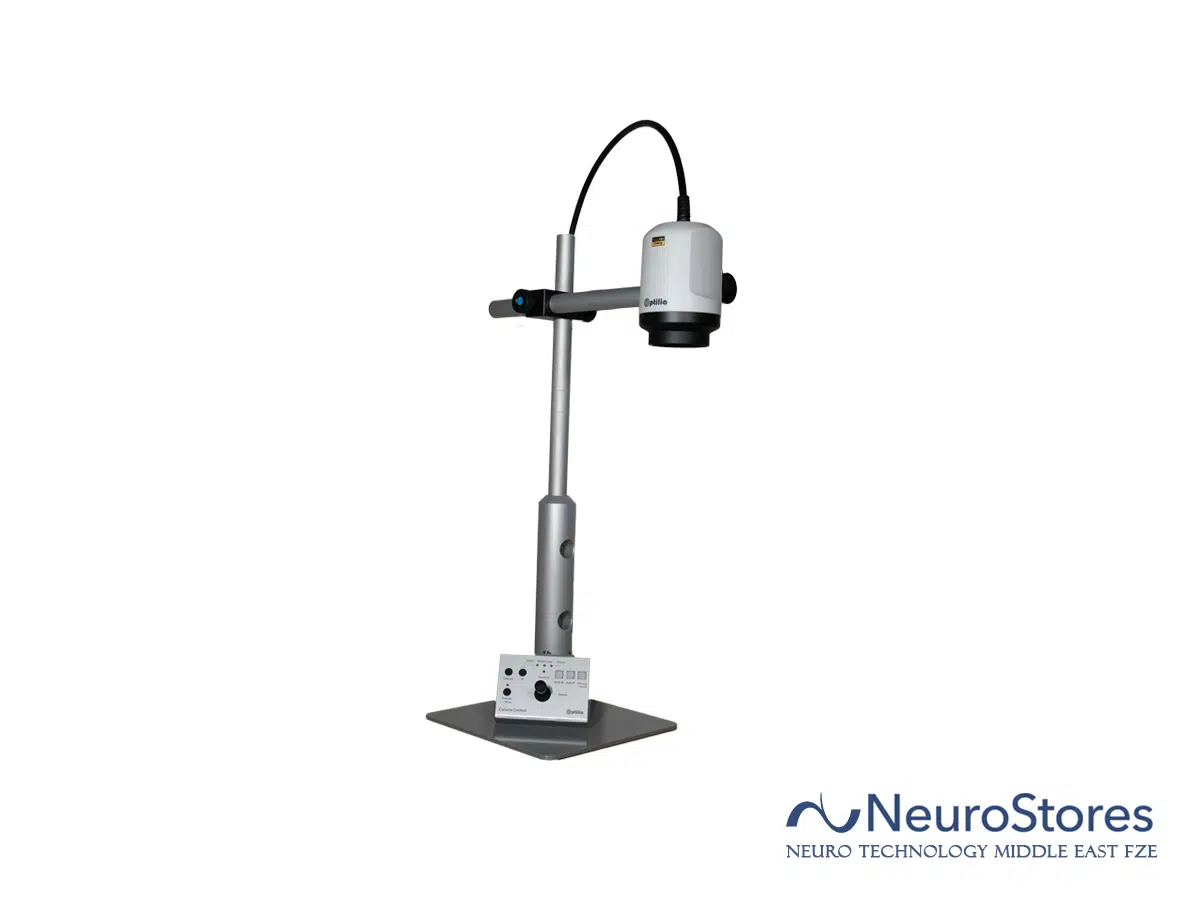

Full HD FreeSight High Working Distance Camera
The Optilia W30 FreeSight Inspection System (HDMI) version has an extended working distance of 500mm and a compatible bench stand specially designed to provide clear and clutter-free bench space for working on objects that you can observe at high magnification.
By deploying extremely quick auto-focus together with Optilia’s renowned and superior optics, the time spent on inspecting objects is significantly reduced compared to other video systems. The integrated laser pointer is an excellent guide to locating the areas of interest in the object. The camera can easily be connected to a Full-HD or HD-ready monitor or TV of relevant size through HD component video outputs. Image attributes, such as brightness, contrast, focus, image sharpness, colour and other parameters are automatically set but can be controlled manually by the user through the software. For recording, measuring and archiving digital images, the system can be linked to a computer through Optilia’s PCI express Frame Grabber with OptiPix software.
W30x-HD FreeSight is made of high-quality components, and ESD protected housing. The instrument is designed according to the requirements of electronics manufacturers regarding excellent image quality, flexibility, time and cost-effectiveness.
Can be upgraded with:
* -E Upgrade to ESD-protected housing
* -M Upgrade to Hermetically Sealed housing IP64
* –OP-009 220 Joystick Camera Control Unit upgrade with Double Save/Recall, Cross-line and Zoom Display
