WOLFGANG WARMBIER
P/N: 7100.PGT120.COM
Special version, PGT®120 with DATA-interface for connection to time and attendance systems. Test results can be exported from the PGT®120 over the RS 232 interface.

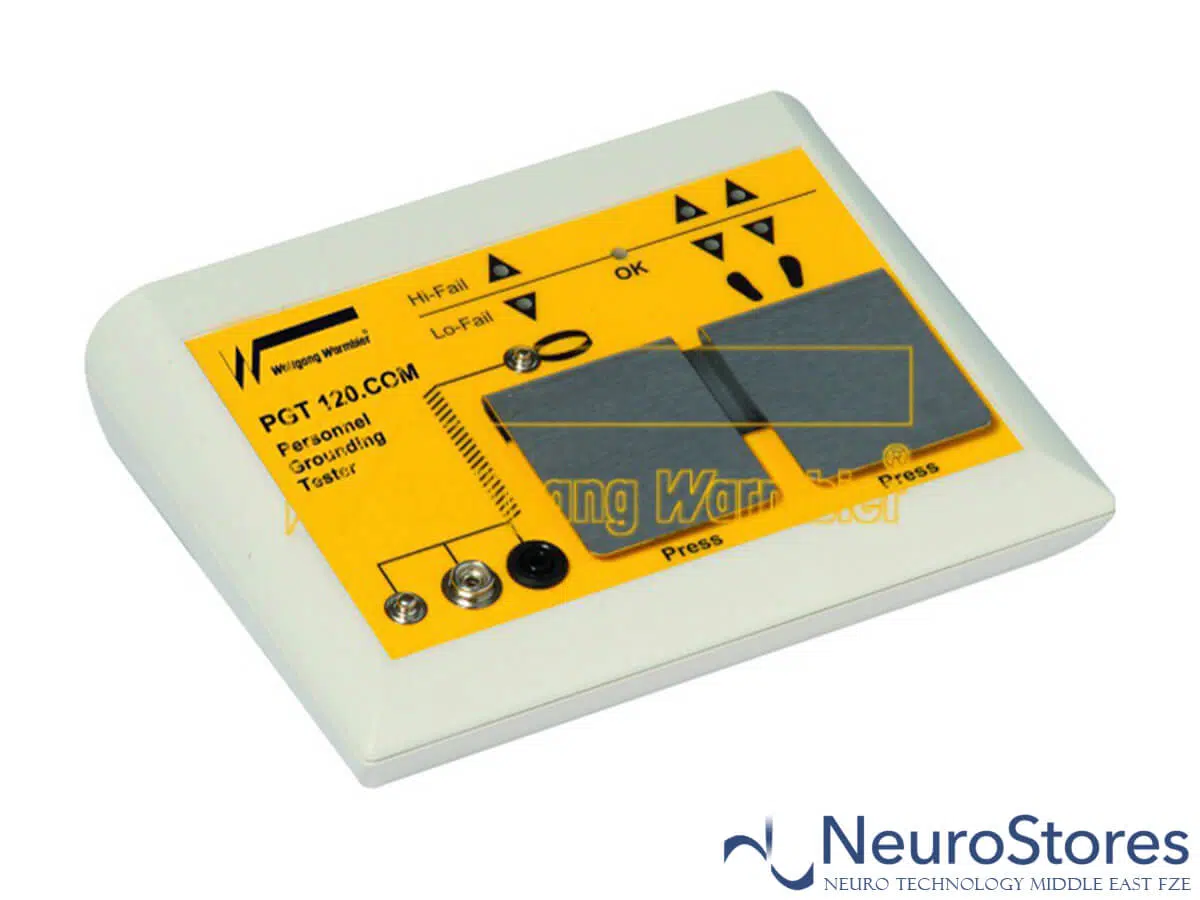

The Personnel Grounding Tester PGT®120 is a wrist strap and footwear tester for access control of ESD protected areas (EPA’s)
The test result is indicated with audible and visual signals. A relay with a dry contact provides the connection to a door opening system
- Power supply: External power supply unit
- Wrist strap, right and left shoe testing is simultaneously possible by separate measuring circuits
- In combination with turnstile gates, the footwear measurement can be performed in series without pressing a button (hands-free mode).
- Separate measurement of left and right shoe
- Test voltages 30 V, 50 V or 100 V (default value)
- Lower limit disabling is possible
- The unit can be used on bench tops or as a wall mounted unit (Wall mounting requires an additional wall mounting plate)
- Adjustable limits through dip switches
- Includes: PGT®120.COM, footwear testing electrode, calibration certificate, operating instructions (german/english), power supply 230 V AC / 12 V
