WOLFGANG WARMBIER
N/P: 7100.ESVM2000
The electrostatic voltmeter – ESVM 2000 is a hand-held non-contacting voltmeter which measures the electrostatic
charges on very small objects. It is an ideal instrument for measurements on semiconductors, printed circuit boards,
connector pins and other areas where a conventional electrostatic field meter cannot be used.
The ESVM 2000 comes with a high-resolution sensor which provides accurate results even in very small areas.
Technical Data:
- Dimension: 6 x 3 x 13 cm (W x H x D)
- Range: 0 up to ± 2 kV DC
- Accuracy: 5% of full scale
- Recommended Probe-to-Test surface distance: 15 mm ± 10 mm
- Power supply: battery operated
- Display: LCD-Display ( 3 ½ digits)
- Sensor: probe (10 x 80 mm)

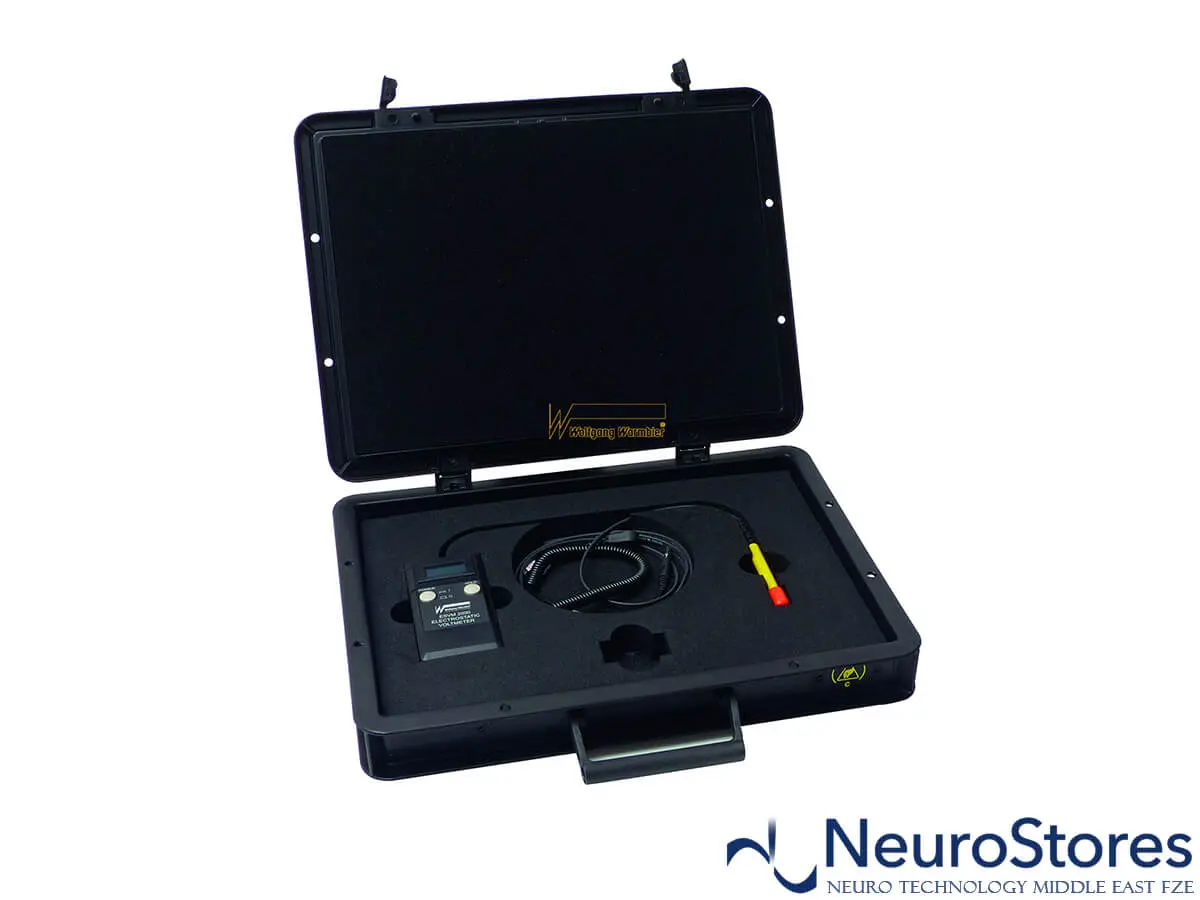

Includes:
- ESVM 2000
- probe
- 9 Volt battery
- conductive carrying case
- user’s instructions in German and English
- calibration certificate
