HAKKO CORPORATION
FM-2024 : Integrated heater realizes great thermal recovery.
Nozzle can be replaced with simple pulling-out operation.
- Integrated desoldering unit equipped with nozzle with built-in heater provides excellent thermal recovery
- Nozzle can be replaced with simple one-touch operation
- Used together with an FM Series station
Choose a station to suit the operation
Specifications vary by station combined.
– Vacuum pump type desoldering tool
> HAKKO FM-204 Vacuum pump type
> HAKKO FM-206 (3-handpiece insertion, optional soldering, SMD rework possible)
– Distribution equipment for plant air or other types of compressed air is required.
> HAKKO FM-202 (Discontinued Products)
> HAKKO FM-203 (2-handpiece insertion, optional soldering, SMD rework possible)
Distribution equipment for plant air or other types of compressed air is required.
Two power receptacles are required.
- One unit can serve dual usage of Gun/Straight configurations
- The composite nozzle ensures superior thermal recovery
- Lightweight design
- ESD safe by design

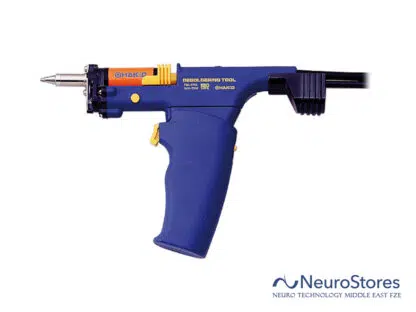

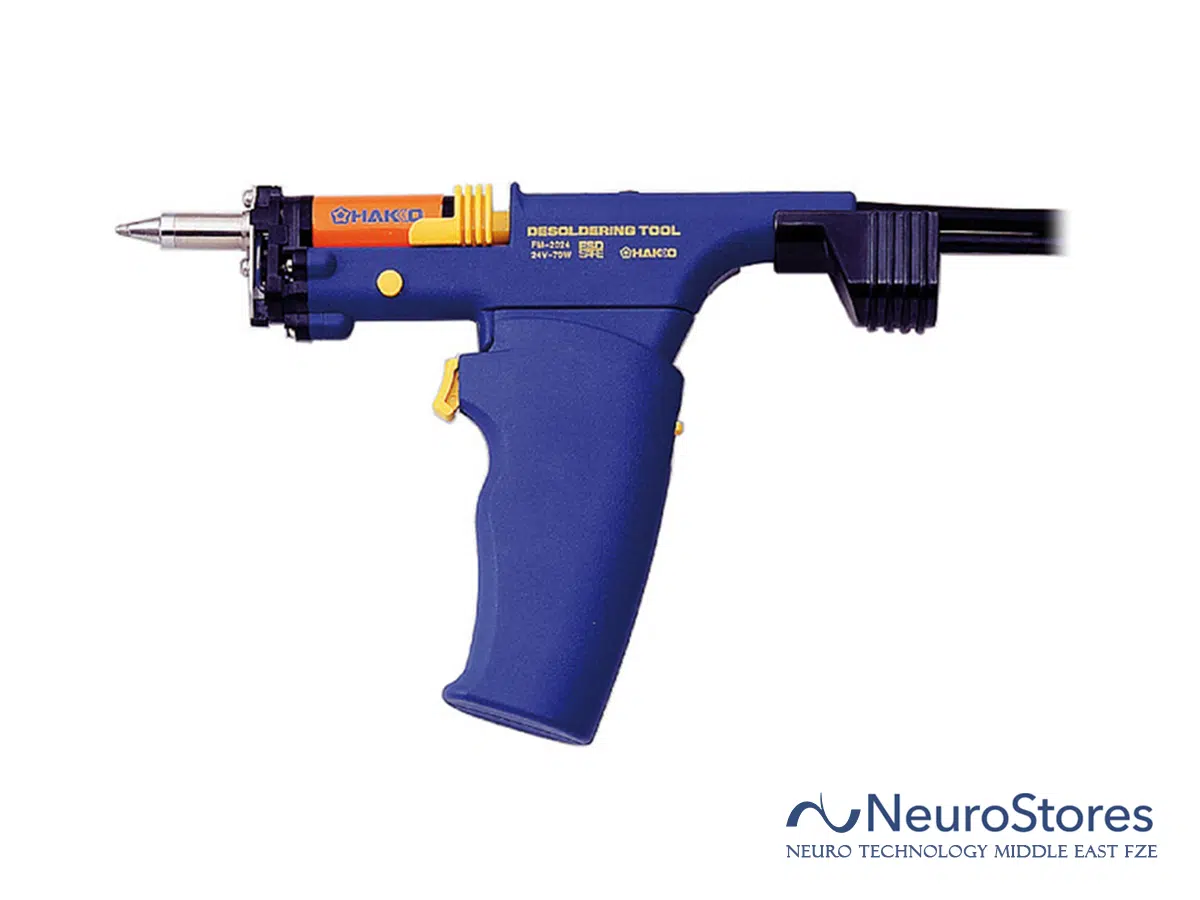

Gun configuration
Straight configuration

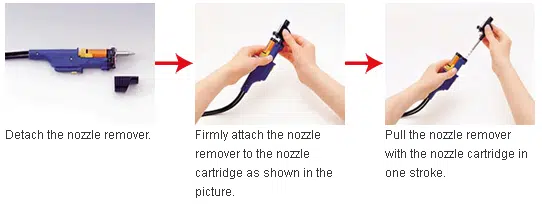

Nozzle cartridge can be replaced even before the nozzle becomes cool.
| Model No. | FM2024-02 | FM2024-22 | FM2024-44 |
|---|---|---|---|
| Power Consumption | 70W (24V) | ||
| Temperature range | 350 to 450ºC | ||
| Nozzle to ground resistance | <2Ω | ||
| Nozzle to ground potential | <2mV | ||
| Heating element | Composite heater | ||
| Cord length | 1.2m | ||
| Total length | 180mm (with Φ1.0mm nozzle) | ||
| Weight | 65g (with Φ1.0mm nozzle) | ||
* Total length and weight (w/o cord, hose)
>> FM2024-02 for HAKKO FM-204
1. MODEL FM-2024 Desoldering tool
2. Handle (for gun configuration)
3. Filter pipe assembly
4. Instruction manual
* Nozzle is not included. Purchase your required size separately
* Click the nozzle image for the dimensions details. N1 Series Nozzle:
