Hakko FR-870B carbon heaters lamps provide powerful support for insufficient heat when reworking and mounting post-production add-ons
- Infrared pre-heater that provides the optimal heating effect over the whole workpiece surface
- 2 Independent switchable work grid partitions
- Infrared carbon heater
- Entire work surface heats rapidly for instant use and improved efficiency
- Non-contact system can be used with double-sided boards
- Set thermal profiles
- Board attachment system facilitates continuous work
Features
Six carbon heaters let you preheat the whole board in next to no time after turning the power on. Full-board heating and quick temperature ramping let you get the job done quickly when reworking or mounting post-production components to multilayer substrates that require greater thermal capacity. As it does not contaminate the air, the HAKKO FR-870B also offers powerful support for a clean workplace environment in industrial applications.
Non-contact system allows preheating of double-sided boards, which hot plates cannot handle.
Auto mode step-heating method (maximum of three steps/step 1-3) heats PWBs slowly and evenly, letting you transmit 100% of the heat energy from a rework system and soldering iron. You’ll never be forced to work with a higher set temperature due to insufficient heat again.
Power Mode
Power mode lets you control heater output using settings from 0% to 100%.
T/C Mode
Once the temperature of the sensor attached to the board reaches the set temperature, the heater is on-off controlled so that the board temperature can be maintained at the set temperature.
Auto Mode
Auto mode provides three steps (Step 1-3) to create an optimal heating profile for the work in question, letting all operators consistently produce work of the same quality. Programs can be set for ten channels in each mode.
Once a PWB is positioned, boards of the same dimensions can be removed or attached in a single motion.
This design greatly facilitates continuous work.
Adjust screws to match board width and length.
Boards are hot after operation and must be handled with care.
| Model No. | FR870B-05 |
|---|---|
| Power consumption | AC220V：1,130W |
| Operation mode | Power mode, T/C mode Auto power mode, auto T/C mode |
| Setting range : Power mode | 0 to 100% |
| Setting range : T/C mode | 50 to 200ºC |
| Setting range : Set time | 0-999seconds |
| Heating element | Carbon heater |
| Effective heated area | 190(W)×80(D)mm |
| Heater area dimensions | 248(W)×140(D)mm |
| Heater zone | 2 |
| Temperature sensor | K-type thermocouple |
| Heater lifetime | 2,100hours |
| Heater control | Power mode : Percentage-based system T/C mode : PID control |
| External connections | Start signal input possible |
| Dimensions | 296(W)×100(H)×311(D)mm |
| Weight | 3.2kg |
* Weight (w/o cord)
* Lamp life is provided for reference purpose only and is not guaranteed.

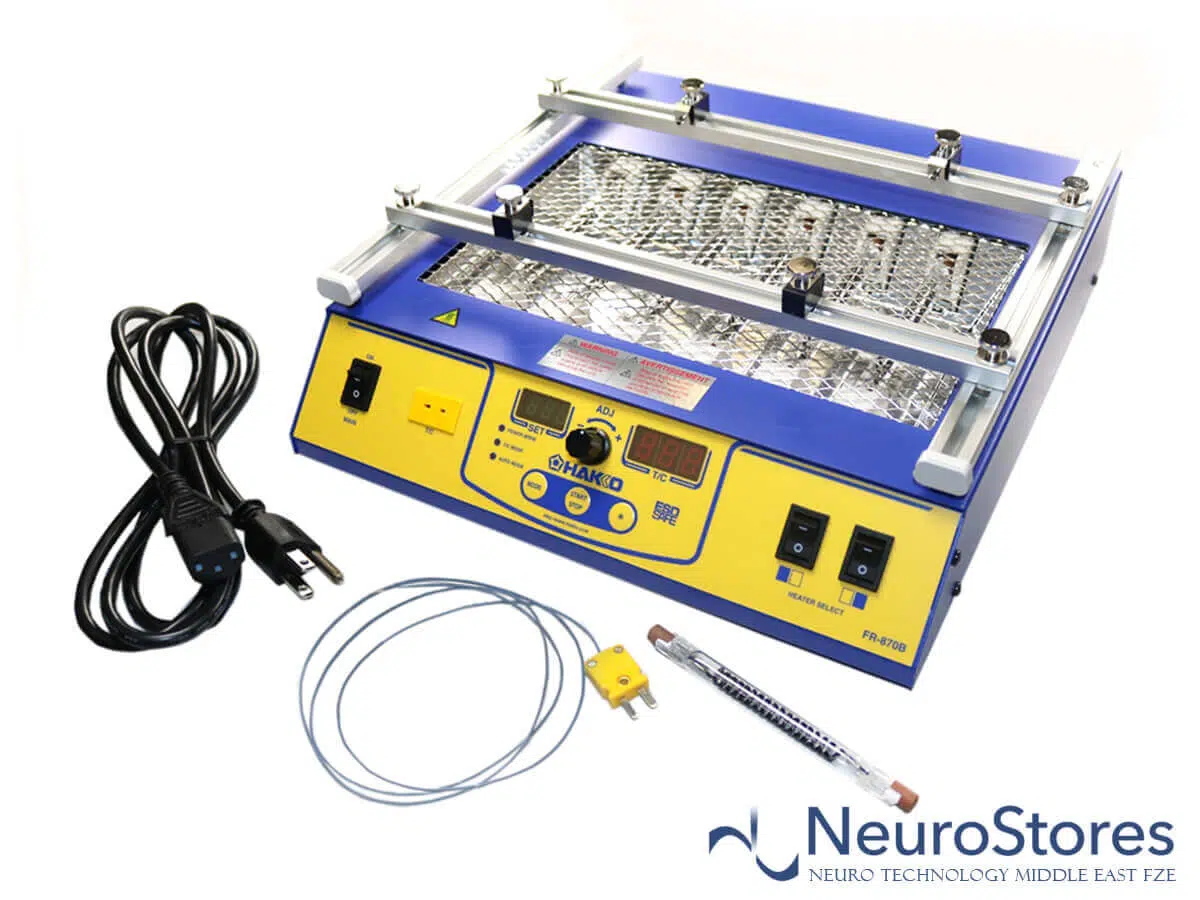

- Preheater unit
- Thermocouple (type K)
- Ppower cord
- Heater lamp (spare)
- Instruction manual
>>Click here for Replacement Parts and Option.
