Hakko FM-2026 N2 Soldering Iron, Conversion Kit

HAKKO CORPORATION

LEAD FREEESD SAFE

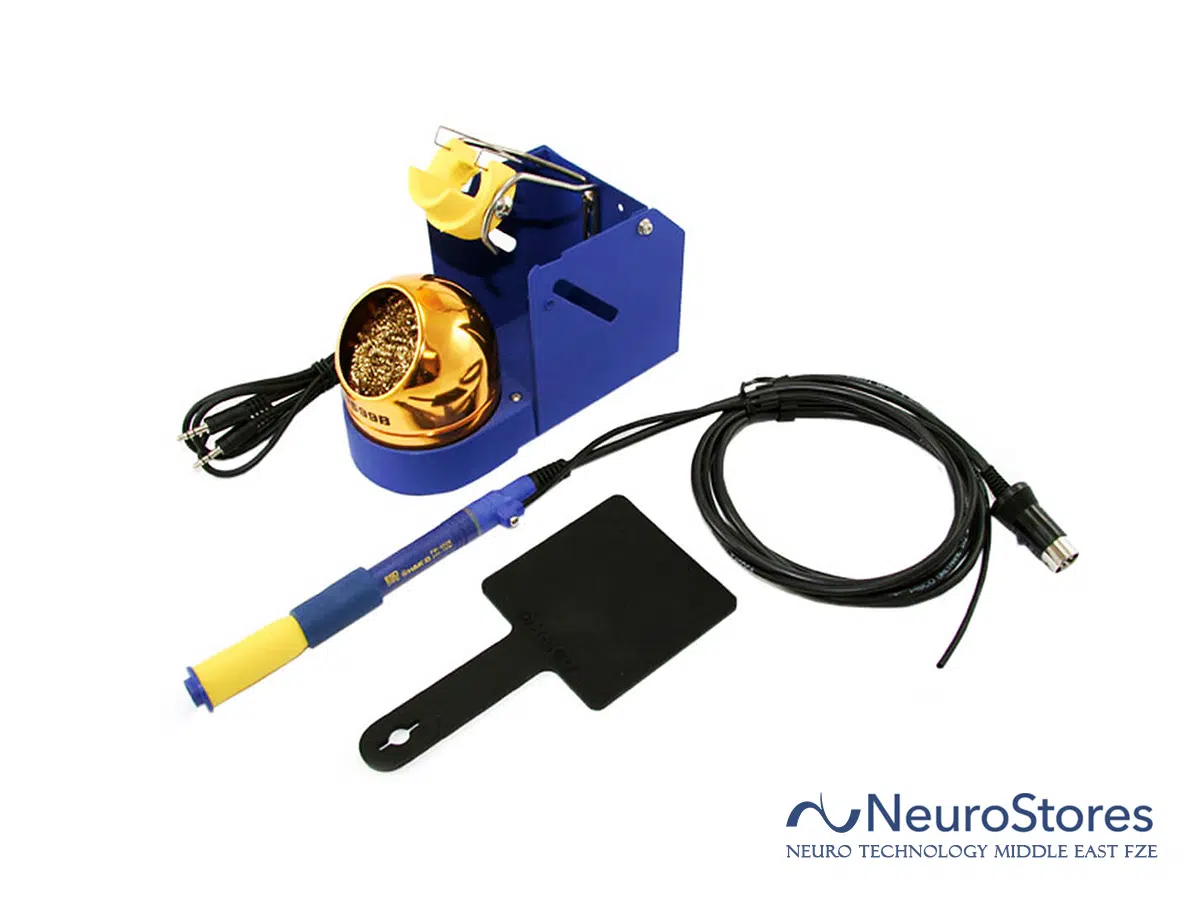

Hakko FM-2026 conversion kit is a completed part including Handpiece, Iron holder, Heat resistant pad, Cleaning wire, etc…

Note: Tips not included

Features

· The hot N2 gas is effective for preheating.

· Can be used in combination with the HAKKO FX-780 and HAKKO FX-791 to create an N2System.

For one soldering ironFor one soldering iron

For two soldering ironsFor two soldering irons

Model No.FM2026-02FM2026-03FM2026-04
Power consumption 70W (24V)
Temperature range200 to 450ºC
Tip to ground resistance<2Ω
Tip to ground potential<2mV
Heating elementComposite heater
Cord length1.2m
Total length205mm (with 2.4D tip)
Weight45g (with 2.4D tip and nozzle assembly C)

* Total length and weight (w/o cord, tube)
* Do not set the temperature over 400ºC.

No. FM2026-04

No.FM2026-04 Packing List
1. Sleeve assembly
2. Sleeve cover
3. Connector assembly
4. Connecting cable
5. Heat resistant pad
6. Iron holder HAKKO FH-200
7. Cleaning wire HAKKO 599B
8. Instruction manual (No photo)

>> T13 Series Tips:

Shape BCM/CM
T13-BCM2Shape-2BC Bevel with indent
B2706 Nozzle assembly A
T13-BCM3Shape-3BC Bevel with indent
B2900 Nozzle assembly G

Shape BC/C
T13-BC1Shape-1BC
B2899 Nozzle assembly F
T13-BC2Shape-2BC
B2706 Nozzle assembly A
T13-BC3Shape-3BC
B2900 Nozzle assembly G
T13-BCF1Shape-1BC Tinned cut surface only
B2899 Nozzle assembly F
T13-BCF2Shape-2BC Tinned cut surface only
B2706 Nozzle assembly A
T13-BCF3Shape-3BC Tinned cut surface only
B2900 Nozzle assembly G

Shape B
T13-B2Shape-0.5B
B2708 Nozzle assembly C
T13-BLShape-BL
B2898 Nozzle assembly E

Shape D
T13-D08Shape-0.8D
B2709 Nozzle assembly D
T13-D16Shape-1.6D
B2708 Nozzle assembly C
T13-D24Shape-2.4D
B2708 Nozzle assembly C

Shape J
T13-J02Shape-0.2J
B2707 Nozzle assembly B

Shape K
T13-KFShape-KF
B2923 Nozzle assembly J
T13-KRShape-KR
B2902 Nozzle assembly I
T13-KUShape-KU
B2901 Nozzle assembly H
