| Model No. | FM2027-02 |
|---|---|
| Power consumption | 70W (24V) |
| Temperature range | 200 to 450ºC |
| Tip to ground resistance | <2Ω |
| Tip to ground potential | <2mV |
| Heating element | Composite heater |
| Cord length | 1.2m |
| Total length | 188mm (with 2.4D tip) |
| Weight | 30g (with 2.4D tip) |
* Total length and weight (w/o cord)

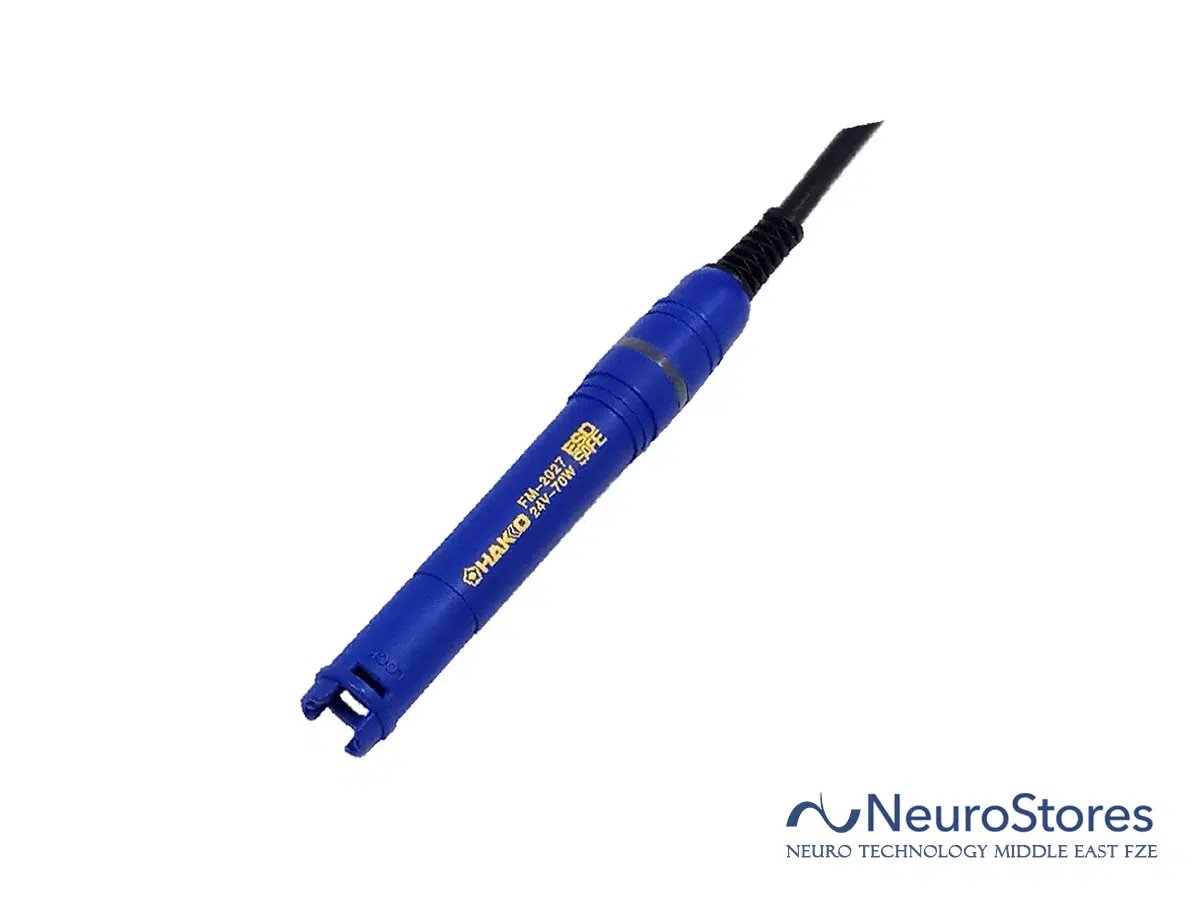

Part No.: FM2027-02
1. Connector assembly
| Model No. | FM2027-02 |
|---|---|
| Power consumption | 70W (24V) |
| Temperature range | 200 to 450ºC |
| Tip to ground resistance | <2Ω |
| Tip to ground potential | <2mV |
| Heating element | Composite heater |
| Cord length | 1.2m |
| Total length | 188mm (with 2.4D tip) |
| Weight | 30g (with 2.4D tip) |
* Total length and weight (w/o cord)
Part No.: FM2027-021. Connector assembly
