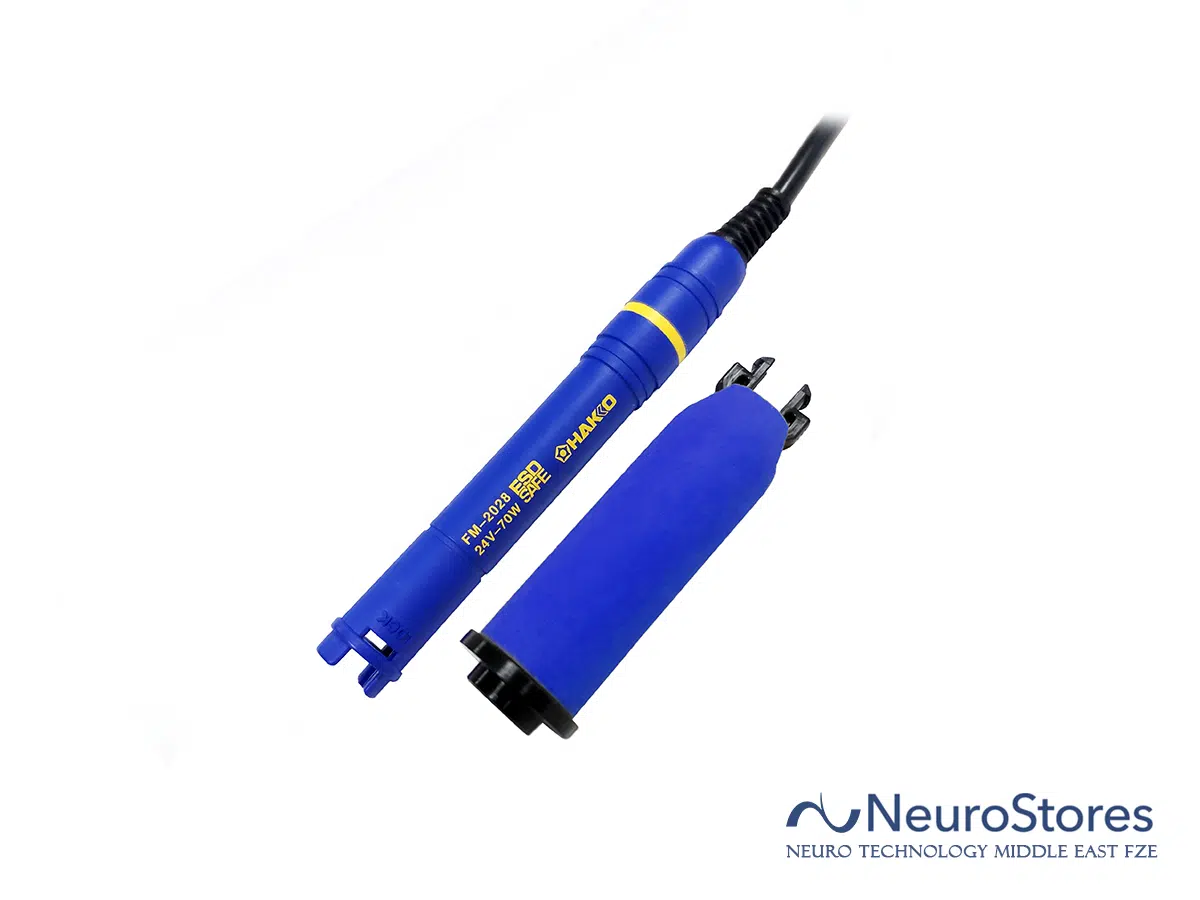

Hakko FM-2028 Soldering Iron, 70W (24V) w/ Sleeve Assembly, Blue

HAKKO CORPORATION

LEAD FREE ESD SAFE RoHS

HAKKO FM-2028 could meet customers’ demands for work in various soldering environments, further improving user-friendliness.

  • Soldering iron in lock-type sleeve assembly

How to remove and insert the tip.

  1. The sleeve assembly has employed the lock type.
    The lock-type sleeve assembly can be attached securely to the connector cover.
    To remove the sleeve assembly, draw it out while holding down the lock part.Lock-type sleeve assembly attachment

To remove the sleeve assembly, draw it out in the arrow direction
while holding down both the lock parts. Removing the sleeve assembly

2. When you insert the tip into the sleeve assembly, you will hear it click!
If you don’t hear it click, the tip is not inserted securely.Removing the tip from the sleeve assembly

3. A green sleeve assembly has been added.
The sleeve assembly variation has now increased to four colors:
yellow, orange, blue, and green.Sleeve assemby is available in four colors

Why are the four colors prepared?
Tip shapes are identified by color, saving the time needed to check the shapes before work. Identifying the tip shapes by color prevents you from using the wrong tip carelessly. This identification method is especially useful when the shapes are the same but differ in size.

>>> Tips for tip slectionExample of different colored sleeve assemblies used to distinguish soldering irons

Model No.FM2028-01FM2028-02FM2028-03
Power consumption70W (24V)
Temperature range200 to 450ºC
Tip to ground resistance<2Ω
Tip to ground potential<2mV
Heating elementComposite heater
Cord length1.2m
Total length188mm (with 2.4D tip)
Weight30g (with 2.4D tip)

* Total length and weight (w/o cord)

Part No.: FM2028-01FM2028-011. Sleeve assembly (Yellow)
2. Connector assembly

Part No.: FM2028-02FM2028-021. Sleeve assembly (Yellow)
2. Connector assembly

Part No.: FM2028-03FM2028-031. Connector assembly

Note: The tip is NOT included in the above set. Please purchase separately.

Shape BCM/CM
T12-BCM2Shape-2BC with indent 1.8x11.5 mm
T12-BCM3Shape-3BC with indent 3.5x10 mm

Shape BC/C
T12-BC1Shape-1BC 1.1x1x11.5 mm
T12-BC1ZShape-1BC(Z) Long life type 1.2x1x10 mm
T12-BC2Shape-2BC 2.1x2x11.5 mm
T12-BC2ZShape-2BC(Z) Long life type 2.3x2x10 mm
T12-BC3Shape-3BC 3.3x3x10 mm
T12-BC3ZShape-3BC(Z) Long life type 3.3x3x10 mm
T12-BCF1Shape-1BC Tinned cut surface only 1.1x1x11.5 mm
T12-BCF1ZShape-1BC(Z) Tinned cut surface only Long life type 1.2x1x10 mm
T12-BCF2Shape-2BC Tinned cut surface only 2.1x2x11.5 mm
T12-BCF2ZShape-2BC(Z) Tinned cut surface only Long life type 2.3x2x10 mm
T12-BCF3Shape-3BC Tinned cut surface only 3.3x3x10 mm
T12-BCF3ZShape-3BC(Z) Tinned cut surface only Long life type 3.3x3x10 mm
T12-C08Shape-0.8C 0.8x0.8x12 mm
T12-C1Shape-1C 1x1x12 mm
T12-C4Shape-4C 4x4x11.5 mm
T12-C4ZShape-4C(Z) Long life type 4.2x4.1x10 mm
T12-CF4Shape-4C Tinned cut surface only 4x4x11.5 mm
T12-CF4ZShape-4C(Z) Tinned cut surface only Long life type 4.2x4.1x10 mm

Shape B
T12-BShape-B 0.2x7.5 mm
T12-B2Shape-0.5B 0.5x10 mm
T12-B2ZShape-0.5B(Z) Long life type 0.5x10 mm
T12-B3Shape-0.7B 0.7x5 mm
T12-B4Shape-0.4B 0.4x5 mm
T12-BLShape-BL For narrow pitch with tall chips around 0.2x12 mm
T12-BZShape-B(Z) Long life type 0.2x8 mm
T12-WB2Shape-0.5WB For heavy duty soldering 0.5x11 mm

Shape D
T12-D08Shape-0.8D 0.8x3.2x9.5 mm
T12-D12Shape-1.2D 1.2x3x10 mm
T12-D12ZShape-1.2D(Z) Long life type 1.2x4x10 mm
T12-D16Shape-1.6D 1.6x3.5x10 mm
T12-D16ZShape-1.6D(Z) Long life type 1.6x5x10 mm
T12-D24Shape-2.4D 2.4x4x10 mm
T12-D24ZShape-2.4D(Z) Long life type 2.4x6x10 mm
T12-D4Shape-4D 4x4x8.5 mm
T12-D4ZShape-4D(Z) Long life type 4x4x10 mm
T12-D52Shape-5.2D 5.2x7x8 mm
T12-DL08Shape-0.8DL 0.8x3x13 mm
T12-DL12Shape-1.2DL 1.2x3x13 mm
T12-DL32Shape-3.2DL 3.2x7x10 mm
T12-DL52Shape-5.2DL 5.2x9x16 mm
T12-WD08Shape-0.8WD For heavy duty soldering 0.8x1.8x11 mm
T12-WD12Shape-1.2WD For heavy duty soldering 1.2x3x11 mm
T12-WD16Shape-1.6WD For heavy duty soldering 1.6x3.5x11 mm
T12-WD52 Shape-5.2WD For heavy duty soldering 5.2x7x10 mm

Shape I
T12-IShape-I 0.2x9.5 mm
T12-ILShape-IL 0.2x12.7 mm
T12-ILSShape-ILS For narrow-pitch soldering 0.15x13.5 mm
T12-WIShape-WI For heavy duty soldering 0.2x11 mm

Shape J
T12-J02Shape-0.2J 0.2x3.5x12 mm
T12-JL02Shape-0.2JL 0.2x7.5x9.3 mm
T12-JS02Shape-0.2JS For narrow-pitch soldering 0.2x1.6x7.9 mm

Shape K
T12-KShape-K 2x4.7x15 mm
T12-KFShape-KF 2.4x4.7x17 mm
T12-KFZShape-KF(Z) Long life type 2.4x4.7x11 mm
T12-KLShape-KL For drag soldering for left-handed 1.5x4.7x11 mm
T12-KRShape-KR For drag soldering for right-handed 1.5x4.7x11 mm
T12-KRZShape-KR(Z) Long life type 2x4.7x12 mm
T12-KUShape-KU 1.2x3x11 mm

SMD Type : Shape QuadFor SMD work
T12-120113.6mm x 8.5mm
T12-120210.3mm x 10.3mm
T12-120312.8mm x 12.8mm
T12-120417.9mm x 17.9mm
T12-120523.4mm x 17.3mm
T12-120622.5mm x 16.5mm
T12-120715.5mm x 15.5mm
T12-120815.8mm x 15.8mm
T12-12098.4mm x 8.4mm

SMD Type : Shape TunnelFor SMD work
T12-10015.1mm x 4.6mm
T12-1002 5.1mm x 10.4mm
T12-10039.5mm x 18.3mm
T12-10049.5mm x 15.8mm
T12-10059.5mm x 13.2mm
T12-10066.9mm x 11.4mm
T12-10077.9mm x 18.8mm
T12-100819.5mm x 10.2mm
T12-100913.4mm x 20.5mm
T12-101019.5mm x 12mm

SMD Type : Shape SpatulaFor SMD work
T12-140110.4mm
T12-140215.7mm
T12-140321.2mm
T12-140425mm
T12-140532mm
T12-140640mm

Shape Concave
T12-1610with V-groove
T12-1612with concave
