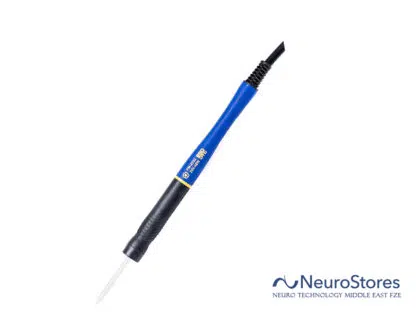

Hakko FM-2032：Micro-soldering iron works with your Hakko high-end stations FX-951, FM-203 or FM-206
- Fine tip and slim heater ensure your sophisticated soldering for precise components on high-density PWB under a microscope.
- N2 Soldering is possible with option parts.
Features
Connect any of the three stations below. The high power 48W heater is capable even to multilayer PWB with excellent thermal recovery.
HAKKO’s slim and light-weight soldering iron sustains a high level of visibility.
Optional parts, “Hose assembly” and appropriate “Nozzle assembly” for the tip, make FM-2032 compatible with N2 system.
Heated N2 gas contributes to ‘improvement of solderbilityʼ, ‘prevention of tip oxidationʼ, and ‘preheating effect’ during micro soldering.
Dedicated tips employ composite heater inside which has enough track records in the market. Now you can solder minute and high-density components which used to be difficult previously.
Tips designed especially for HAKKO FM-2032 – T30 Series
(Click here for more information on how to use each tip, other details.)
Attach a grip mark for lead-free soldering or remove it for eutectic soldering.
How you use it is up to you.
Grip marks are convenient for identifying soldering tips which are difficult to recognize at a glance.
| Model No. | FM2032-51 | FM2032-52 |
|---|---|---|
| Power consumption | 48W (24V) | |
| Temperature range | 200 to 450ºC | |
| Tip to ground resistance | <2Ω | |
| Tip to ground potential | <2mV | |
| Heating element | Composite heater | |
| Cord length | 1.3m | |
| Total length | 170mm (with 1D tip) | |
| Weight | 14g (with 1D tip) | |
* Total length and weight (w/o cord)
Part No. FM2032-51
- Soldering iron (HAKKO FM-2032)
Part No. FM2032-52
-
- Soldering iron (HAKKO FM-2032)
- Heat resistant pad
- Iron holder (w/cleaning sponge)
- Connecting cable
- Instruction manual
Note: A soldering tip is not included with this product. The desired tips should be purchased separately.
T30 Series
Shape D
-
T30-D06 Shape-0.6D
C5038 Nozzle assembly A
C5041 Nozzle assembly D-
T30-D1 Shape-1D
C5038 Nozzle assembly A
C5041 Nozzle assembly D
Shape I
-
-
-
T30-I Shape-I
C5038 Nozzle assembly A
C5041 Nozzle assembly D
-
Shape J
-
-
-
-
T30-J Shape-J
C5040 Nozzle assembly C
C5041 Nozzle assembly D
-
-
Shape K
-
-
-
-
T30-KN Shape-KN
C5039 Nozzle assembly B
C5041 Nozzle assembly D -
T30-KU Shape-KU
C5038 Nozzle assembly A
C5041 Nozzle assembly D
-
-
