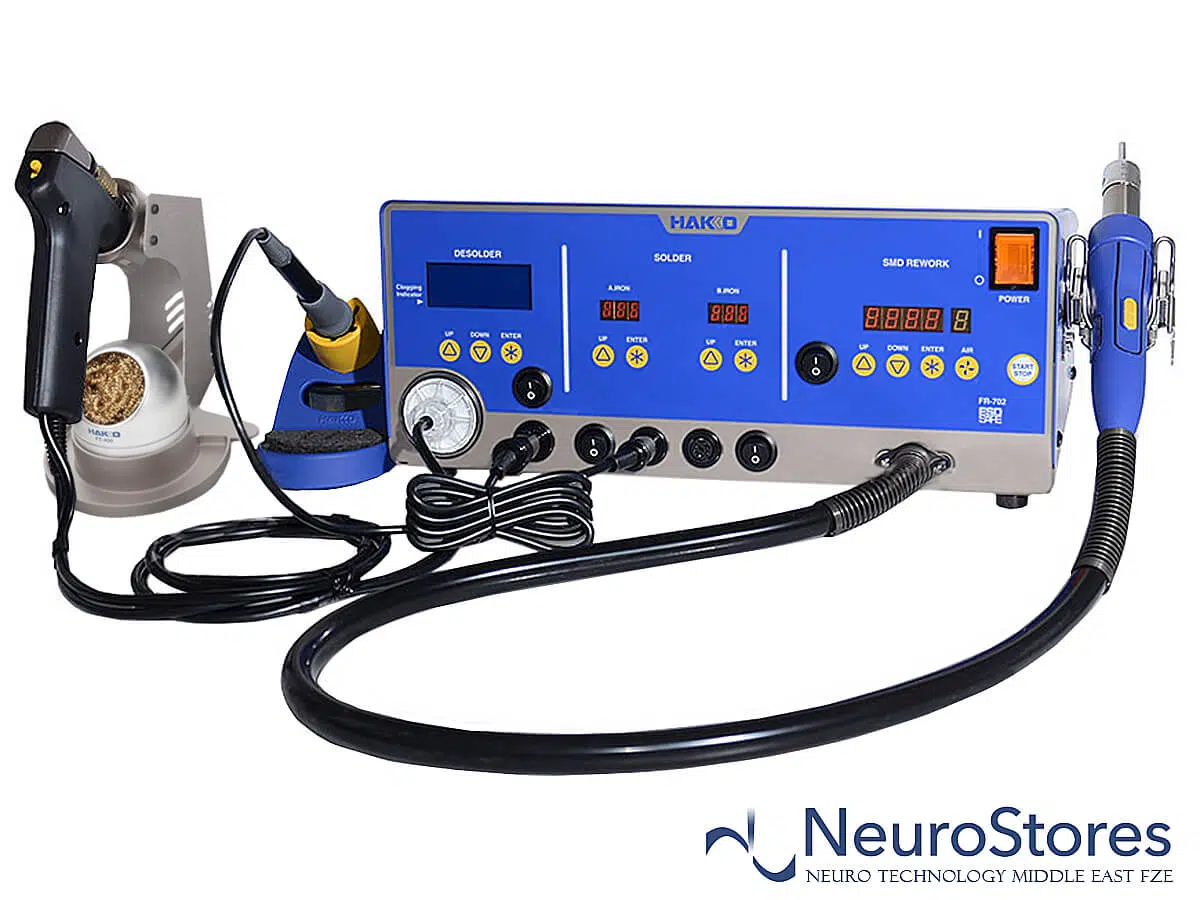

Hakko FR-702 Multi-Function Rework System, 1,030W (220V 50/60Hz)

HAKKO CORPORATION

LEAD FREE ESD SAFE

Hakko FR-702 4 Port Rework Station with 140 W desoldering gun, M-type soldering iron and 670W hot air

  • Powerful rework stations that contain every function needed for rework
  • Safer and more secure rework operation
  • With upgraded all the applications
  • 4-in-1 unit for space saving
  • Compatible with N2 system by purchasing N2 iron (FX-8802) as an optional accessary

Features

It handles various soldering, desoldering and reworking by choosing proper handpieces from a selection of 7 types.

Other than the standard handpieces of 140 W desoldering gun, M-type soldering iron and high power & large volume hot air, there are 4 more applications. Consumed tip nozzle and heating element can be replaced individually, and running cost is much lower than the composite type.

High-power Desoldering gun HAKKO FR-4103

Increasing the power to 140 W from 50 W of our previous models (HAKKO 474・475), it can make it easy to desolder on multi-layer PWB which was never an easy job, and it can also shorten the process time.
A wide selection of nozzle, with the addition of new types, is available for a variety of desoldering works.
– Long type nozzles for narrow space
– Oval shape nozzles for flat terminals
– SS type nozzles for micro land-patterns

ハイパワー はんだ吸取器 HAKKO FR-4103

>>Click here for more information about HAKKO FR-410.

Soldering iron HAKKO FX-8801/FX-8805

Thermal conductivity has been increased by reviewing external configuration and internal structure of 900 tip series.
Now T18 and T19 tip series are selectable depend on work environment.

はんだこて HAKKO FX-8801/FX-8805

>>For more information about HAKKO FX-8801/FX-8805

Hot air handpiece

670 W high power and large volume hot air improves work efficiency.

・High power and large volume hot air for quick removal of componentsホットエアー

・New type of nozzles for improvement of temperature characteristicsホットエアーThe new nozzle improves work efficiency with uniform heating by hot air convection inside the nozzle which is created due to vents on the nozzle top. (only with BGA nozzles)

・Vacuum pickup functionホットエアーThe vacuum pick up function is to pick up a component with a suction pad and vacuum. It will pick a component only after the hot air melts solder joints. This can avoid an error to peel off the land by removing a component with excessive force.

・Pickup indicator lets you know the pickup timing at a glance!ホットエアーBy pre-setting pickup function, a component can be picked up automatically when solder is melted. Then, the indication comes up and the moment of picking up will be visible.
Even a component and solder joints cannot be seen as covered by a nozzle, easy and safe picking up is possible.

N2 soldering iron HAKKO FX-8802

N2 soldering iron HAKKO FX-8802The N2 gas runs into the nozzle assembly and covers over the soldering tip. It prevents the soldering tip and the heater from being readily oxidized and performs great role as a preheating.
Two effects of N2 system, preventing oxidation or preheating effect, can improve soldering defects such as bridging, protrusion icicle, insufficient solder filling in PTH, etc.
T18 tips series are compatible with this application.

>>For more information about HAKKO FX-8802.
>>N2 system required equipments

One-hand Manual-solder-feed iron HAKKO FX-8803

はんだこて HAKKO FX-8803

– Solder and feed with one hand
– Feed a set amount of solder with one hand
– Manual feed system is perfect for cellular manufacturing.
– Soldering work can be conducted at the pace of the operator.
– T18 tips series are compatible with this application.

SMD Hot Tweezer HAKKO FX-8804

はんだこて HAKKO FX-8804

– Direct heating—less influence upon surrounding components on crowded boards.
– Easily removes SMD chips and flat packages up to 25mm.
– The collet allows easy replacement and alignment of the tips.

Specifications

Model No.FR702-10
Power consumption1,030W

Station
Dimensions370(W)×150(H)×220(D)mm
Weight9kg

Station (Soldering)
Output voltageAC 26V
Temperature range50 to 480ºC
Temperature stability±1ºC at idle temperature (When set to 200 to 480ºC)

Station (Desoldering)
Output voltageAC 24V
Vacuum generatorVacuum pump, double cylinder type
Vacuum pressure80kPa (600mmHg)
Suction flow15L/min.
Temperature range330 to 450ºC
Temperature stability±5ºC at idle temperature

Station (Hot air)
Power consumption30W
Air flow1 to 9 (5 to 115L/min.)L/min.
Temperature range50 to 600ºC

Soldering iron
Power consumption65W (26V)
Tip to ground resistance<2Ω
Tip to ground potential<2mV
Heating elementCeramic heater
Standard tipShape-B (No.T18-B)
Cord length1.2m
Total length222mm (with B tip)
Weight52g (with B tip)

Desoldering Gun
Power consumption140W (24V)
Nozzle to ground resistance<2Ω
Nozzle to ground potential<2mV
Heating elementComposite heater
Standard nozzleΦ1.0mm S type (No.N61-05)
Cord length1.2m
Total length168mm (with Φ1.0mm S type nozzle)
Weight170g (with Φ1.0mm S type nozzle)

Handpiece (Hot air)
Power consumption670W
Total length250mm
Weight180g

* The suction flow is measured at the filter case suction port of station.
* Airflow capacity is rated as free-flowing. Restrictions created by various nozzles may reduce the maximum airflow capacity.
* Total length and weight (w/o cord, hose)

Packing List

Packing List

  1. Station
  2. Soldering iron (FX-8801)
  3. Desoldering gun (FR-4103)
  4. Iron holder for soldering gun (with cleaning wire)
  5. Iron holder for desoldering iron (with cleaning sponge, cleaning wire)
  6. Tool box (Cleaning pin for ø1.0 mm, Cleaning pin for heater, Cleaning drill for ø1.0 mm, Nozzle wrench, Filter [qty 2], Ceramic paper filter [qty 4])
  7. Handpiece holder for hot air
  8. Pad (Φ3mm, Φ5mm, Φ7.6mm: qty 2 each）
  9. Heat resistant pad
  10. Vacuum Pipe Control Knob (L with screw)
  11. Color band (qty 2)
  12. Power cord
  13. Instruction manual

Soldering Tips/Nozzles

T18 Series Soldering Tips for FX-8801(65W):
Shape BC/C
T18-C05Shape-0.5C 0.5 x 13.5mm
T18-C08Shape-0.8C 0.8 x 15.5mm
T18-C1Shape-1C 1 x 13.5mm
T18-C2Shape-2C 2 x 14.5mm
T18-C3Shape-3C 3 x 14.5mm
T18-C4Shape-4C 4 x 14.5mm
T18-C5Shape-5C 5 x 14.5mm
T18-CF1Shape-1C 1 x 13.5mm

Tinned cut surface only
T18-CF15Shape-1.5C 1.5 x 13.5mm

Tinned cut surface only
T18-CF2Shape-2C 2 x 14.5mm

Tinned cut surface only
T18-CF3Shape-3C 3 x 14.5mm

Tinned cut surface only
T18-CF4Shape-4C 4 x 14.5mm

Tinned cut surface only
T18-CSF25Shape-2.5CS 2.5 x 10mm

This type has good
heat transfer with short tip end design,
tinned cut surface only.
T18-S6Shape-S6 1.3 x 16.5mm
T19 Series Soldering Tips for FX-8805(65W):
Shape BC/C
T19-C3Shape-3C 3 x 18.5mm
T19-C4Shape-4C 4 x 18.5mm
T19-C65Shape-6.5C 6.5 x 15.5mm
N61 Series Desoldering Nozzles:
SS type:
N61-01Size Φ0.6mm
N61-02Size Φ0.8mm
N61-03Size Φ1.0mm
S type:
N61-04Size Φ0.8mm
N61-05Size Φ1.0mm
N61-06Size Φ1.3mm
Standard type:
N61-07Size Φ0.8mm
N61-08Size Φ1.0mm
N61-09Size Φ1.3mm
N61-10Size Φ1.6mm
Long type:
N61-11Size Φ0.8mm
N61-12Size Φ1.0mm
N61-13Size Φ1.3mm
N61-14Size Φ1.6mm
Oval type:
N61-15Size 3×1 mm
N61-16Size 4×1 mm
N51 Series Hot Air Nozzles:
N51-50 Nozzle Set
N51-01 2.5 mm
Vacuum function inoperative nozzle
N51-03 5.5 mm
N51-04 7 mm
N51-05 1.5x3 mm/45°
Single
N51-012.5 mm
Vacuum function inoperative nozzle
N51-024 mm
N51-035.5 mm
N51-047 mm
Bent Single
N51-05 1.5x3 mm/45°
Vacuum function inoperative nozzle
BGA
N51-10Size 4×4 mm
N51-11Size 6×6 mm
N51-12Size 8×8 mm
N51-13Size 10×10 mm
N51-14Size 12×12 mm
N51-15Size 14×14 mm
N51-16Size 15×15 mm
N51-17Size 17×17 mm
N51-18Size 18×18 mm
N51-19Size 20×20 mm
N51-20Size 22×22 mm
N51-21Size 24×24 mm
N51-22Size 27×27 mm
N51-23Size 29×29 mm
N51-24Size 35×35 mm
N51-25Size 38×38 mm
N51-26Size 40×40 mm

Replacement Parts / Option

>> Click here for Replacement Parts and Option.

Add to quote
