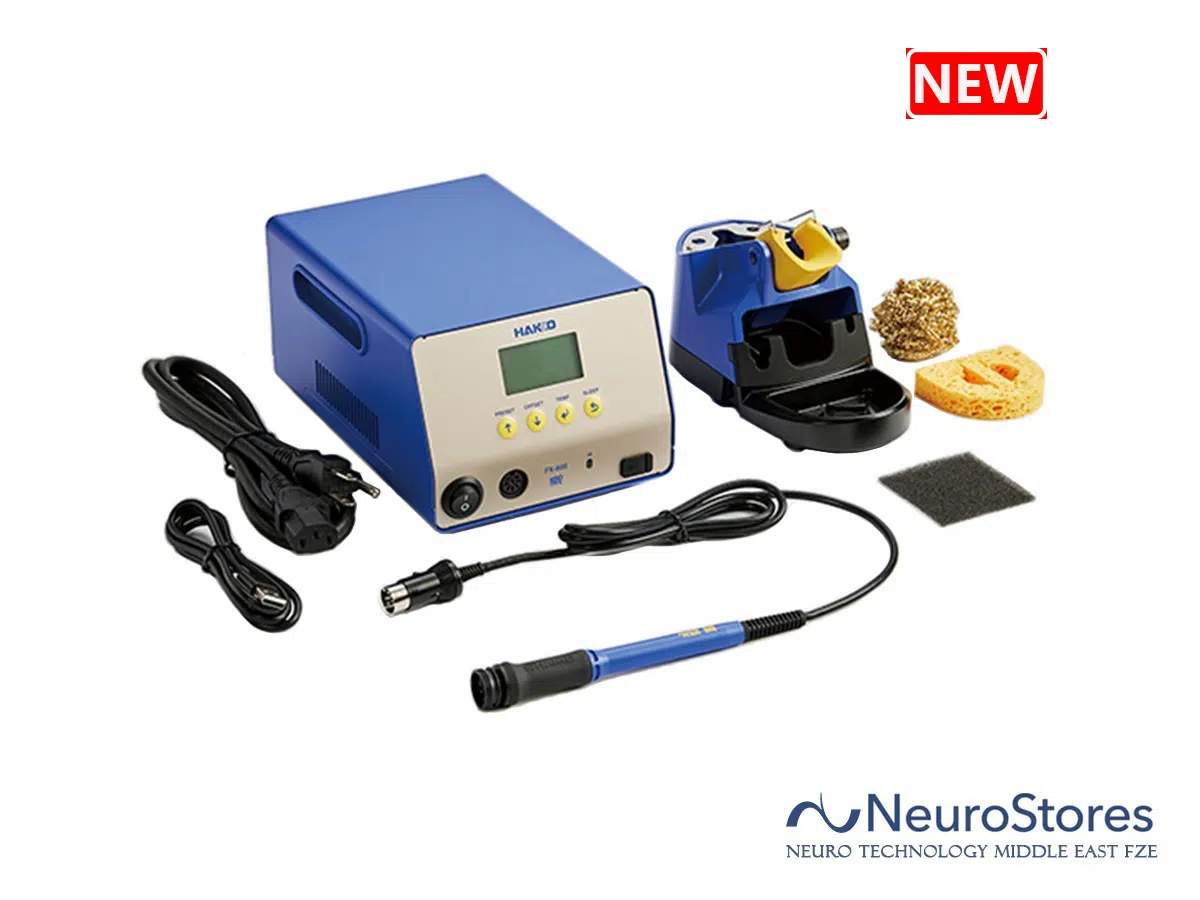

Hakko FX-805 the Fusion of Ultra Power & Operability Unleashes Heavy-Duty Soldering.
The Smallest, Lightest and Best Heavy-Duty Soldering Station
Click here to check out the video
- Heavy-duty soldering station with Ultra Power 400 W
- The fusion of Ultra Power & Operability
- The new design iron holder for safe tip replacement
- Human error-free temperature management
- Compatible with N2 system by purchasing N2 iron (FX-8005) as an optional accessory
Features
FX-805 with 400 W composite heater, the highest wattage in HAKKO composite tips, achieves rapid heating.
It is best suited for soldering transformers or coils on power-supply boards or shield cases on communication devices.
Performance Comparison among Different Wattages.
The newly developed composite tip achieves 400 W Ultra Power.
Its high thermal capacity improves soldering productivity to 120%* of the conventional model.
- Comparison with FX-801 (300 W soldering station)
- Improved Sensor Sensitivity
The improved sensor is set close to the tip end and measures a more accurate temperature at the soldering point. -
- The New Tip Design for Smoother Heat Transfer
The volume of the heater body is 113%* of the conventional model without a change in diameter and improves thermal conductivity
- Comparison with FX-801 (300 W soldering station)
- The New Tip Design for Smoother Heat Transfer
The Lightest Handpiece in Heavy-Duty Soldering Stations with a Weight of approx. 50 g.
Despite its 400 W power, the handpiece is the lightest in the industry for comfortable operation. Please experience the outstanding performance.
The 10%* thinner cord makes operation and handling smoother.
- Comparison with the handpiece of FX-801 (300 W soldering station)
Safe Tip Replacement
The new design iron holder with the tip removing attachment makes tip replacement safe and easy.
Removing a tip with the right groove of the attachment
Inserting a tip by using the tip insertion holder
The sensor inside the handpiece detects if it is set on the holder and the station will activate the auto sleep function/auto-shutoff function. No connecting cable between the station and the iron holder is required, which allows a free layout.
No connecting cable between the station and the iron holder
The sleep function will activate when the specified time passes after the handpiece is set on the holder.
The cordless design allows the free layout of the station.
The dedicated software automatically records set temperature, calibration/off-set, and tip sensor temperature in soldering. It prevents human error in such recording.
The dedicated software is available for download on the Hakko website.
Click here to download the FX-805 software.
To download the software, both “user registration” and “product registration” are required.
Click here for “user registration” and “product registration”.
10 mm Wide Soldering Tip, Best Suited for Soldering Large Components
The T37 series has a 10 mm wide tip in the lineup, which maximizes the performance of 400 W power.
Best suited for soldering large components with high thermal mass and thick wire harnesses.
Shape-10D
Part number: T37-D10
The V-groove on the tip increases the contact area with land and component lead. As a result, it effectively transfers heat and improves through-hole fill, soldering quality and productivity.
Shape 4BC w/v-groove
Part number: T37-BCR4
The videos for the features of FX-805 are available.
Click here to check out the videos.
Replacing an iron part (FX-8004) with an optional N2 iron part (FX-8005) enables the use of the N2 system.
N2 gas heated inside soldering iron is discharged from the tip end and it reduces the oxidation of tips. It also improves solderability with its preheat effects.
Click here for details.
N2 Soldering Iron FX-8005
N2 System Effect
Specifications
FX-805
460 W
50 to 500℃
±5℃ at idle temperature
Station
AC 30 V
143(W)×107(H)×218(D)mm
3.9 kg
Soldering Iron
390 W (30 V)
＜2 Ω
＜2 mV
Composite heater
1.2 m
244 mm (with T37-D24 tip)
54 g (with T37-D24 tip)
*Total length and weight are measured without a cord.
| Model No. | Packing List |
|---|---|
| FX-805 |
|
In FX-805, no soldering tip is included. Please purchase a “T37 Series” soldering tip separately.
T33 Series (300 W) are also compatible with FX-805. Click here for the detail of the T33 Series.
T37 Series
|| Shape BC
Shape-BC hor:3mm vrt:4.5mm
Shape-BC hor:4mm vrt:6mm
Shape-BC hor:5mm vrt:7.5mm
Shape-BC hor:6mm vrt:9mm
Shape-BC hor:7mm vrt:10.5mm
|| Shape D
Shape-2.4D
Shape-3.2D
Shape-5D
Shape-6D
Shape-10D
