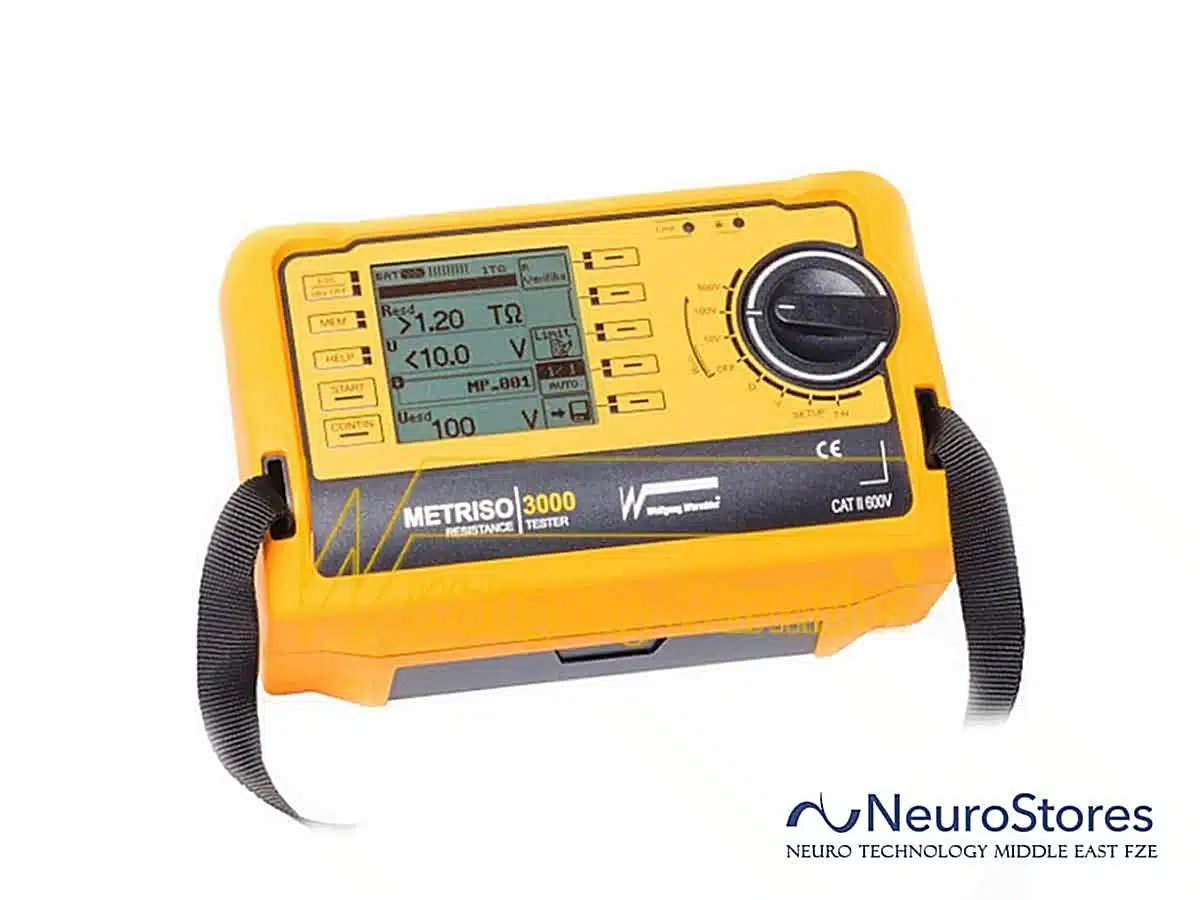

Metriso 3000, Test Instrument

• Suitable for resistance point-to-point and resistance to ground measurements
• Integrated data logger with USB communication port for data transmission (50.000 test values). The supplied Report Generating Software ETC allows to generate a complete test report
• A barcode scanner can be used in order to record measurement points before testing
• menu language: German/English

• Test voltage / Test current: 1 mA <= I <= 1,3 mA
  • High ohmic range: DC 10 volts,100 volts and 500 volts
• Test range:
  • low ohmic range: 0 to 10 kOhm
  • high ohmic range: 1 kOhm to 1,2 TOhm
• Operation: Battery operated
• complies with IEC 61340-4-1, IEC 61340-2-3, IEC 61340-4-5

Metriso 3000
