Tohnichi DOTE4/DOTE4-G Digital Torque Wrench Tester

TOHNICHI MANUFACTURING CO. LTD.

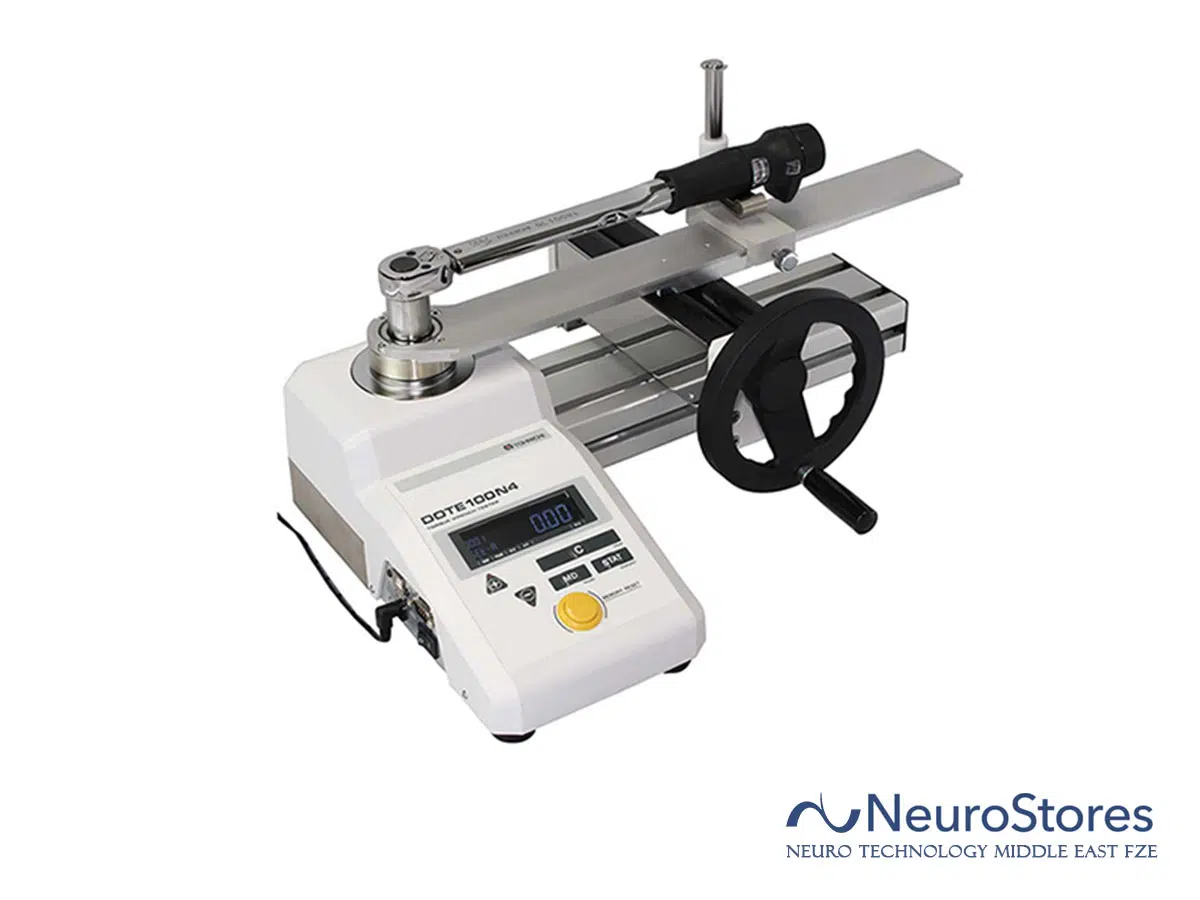

Tohnichi DOTE4/DOTE4-G

Comes with Pass/Fail Judgment, using color to give you judgment results. That’s the best for torque wrench calibration.

Application:

• For calibration and adjustment of torque wrenches

Features:

• DOTE4 and DOTE4-G digital torque wrench tester models have a Pass/Fail Judgment function. The LCD panel displays values in color, making it easy to verify whether measurement readings are within set parameters.
• Upper and lower parameter values can be entered by keystroke, or by entering a command in an external device, such as a computer or barcode reader. *Dedicated software ordered separately is required to enter a command from an external device.
• The loading device acts on the effective length of the torque wrench. This means that calibration conditions are uniform, permitting measurement accuracy.
• Torque measurement resolution is more than double what was offered by the DOTE3 and DOTE3-G models.
• ExRcv (Excel Receiver) software automatically enters measured data in a Microsoft Excel® file. The software can be downloaded for free from the Tohnichi website. *This function requires a cable (No. 383 or 385, sold separately) to connect the DOTE4 to a computer.
• Outputs measurement results to a computer or dedicated printer, using RS232C / USB output connector
• The large DOTE500N4(-G) and DOTE1000N4(-G) models offer an optimal display position, making it easy to read the display during work.
• DOTE4-MD2 and DOTE4-G-MD2 models have a loading device with an electric motor, ideal for calibrating, adjusting and repairing many torque wrenches.
• Also for DOTE4 and DOTE4-G models with a JCSS Calibration Certificate, and for models with a statement of calibration uncertainty.
• Uses AC100 to 240V ± 10% power. The battery pack also available as an option.
• CE markings applied for use in the EU.

|More Specifications
