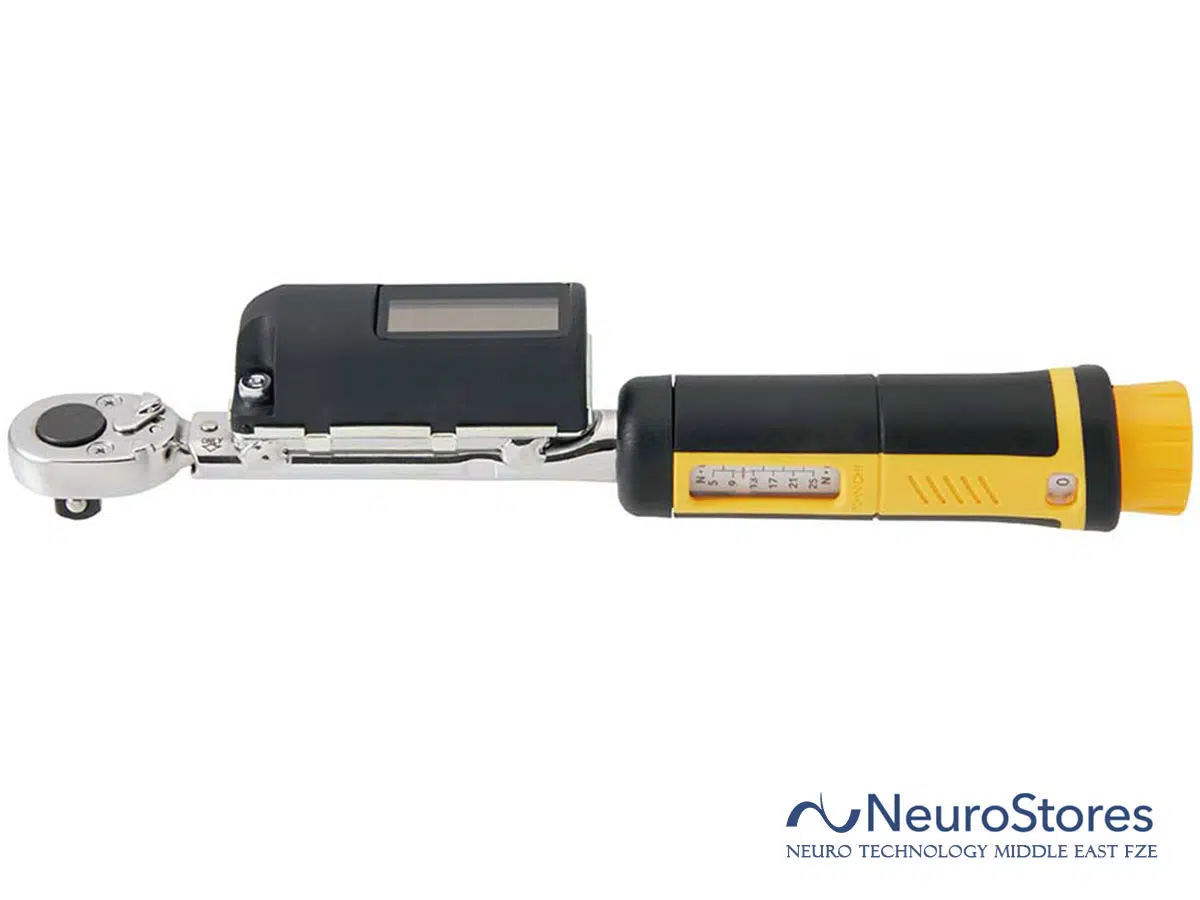

Now also available in the U.S., Canada, and Mexico. Torque wrench with wireless “pokayoke” error proofing to prevent missed tightening, using the Energy Harvest system for solar power generation. No need to change batteries, eliminating battery expense and bothersome battery replacements. The R-BL receiver has been upgraded to the R-CM, which is downward compatible.
Pokayoke error-proof system helps prevent human error when tightening bolts and screws
Assembly line interlock control system using tightening count control
Pokayoke (error-proof) system / Tightening control system
Conforms with technical standards of the U.S. and Canada.
A world first! Uses the “Energy Harvest” solar power generation system.
No need to change batteries, reducing cost and time, and no dead batteries to dispose of. Result: A more eco-friendly torque wrench.
Doesn’t require much light for regular use! Under normal interior illumination in an ordinary factory and powered only by a solar panel, the device can transmit tightened-to-completion signals for a Pokayoke (error-proofing) system.
Easy setup. When you hear the “Click!” the transmitter/receiver setting is done. Just operate the torque wrench to set the transmitter/receiver setting. * For the R-BLA, place the unit in Set Mode, then operate the torque wrench.
Many Tohnichi LS-type torque wrenches that are currently in use can be converted into battery-less, wireless Pokayoke torque wrenches. The limit switch component on 278 models of Tohnichi’s wired LS-type torque wrenches can be converted by customers on their own, to upgrade their existing models at a low cost. 156 models in Tohnichi’s lineup of 278 LS-type torque wrenches can be shipped with the T-BL transmitter mounted. For further details, refer to the catalogue.
The T-BLA/QLBLA is for use only in the U.S., Canada and Mexico. The T-BLE/QLBLE model is available for use in the EU and China. The T-BL/QLBL is for use only in Japan.
