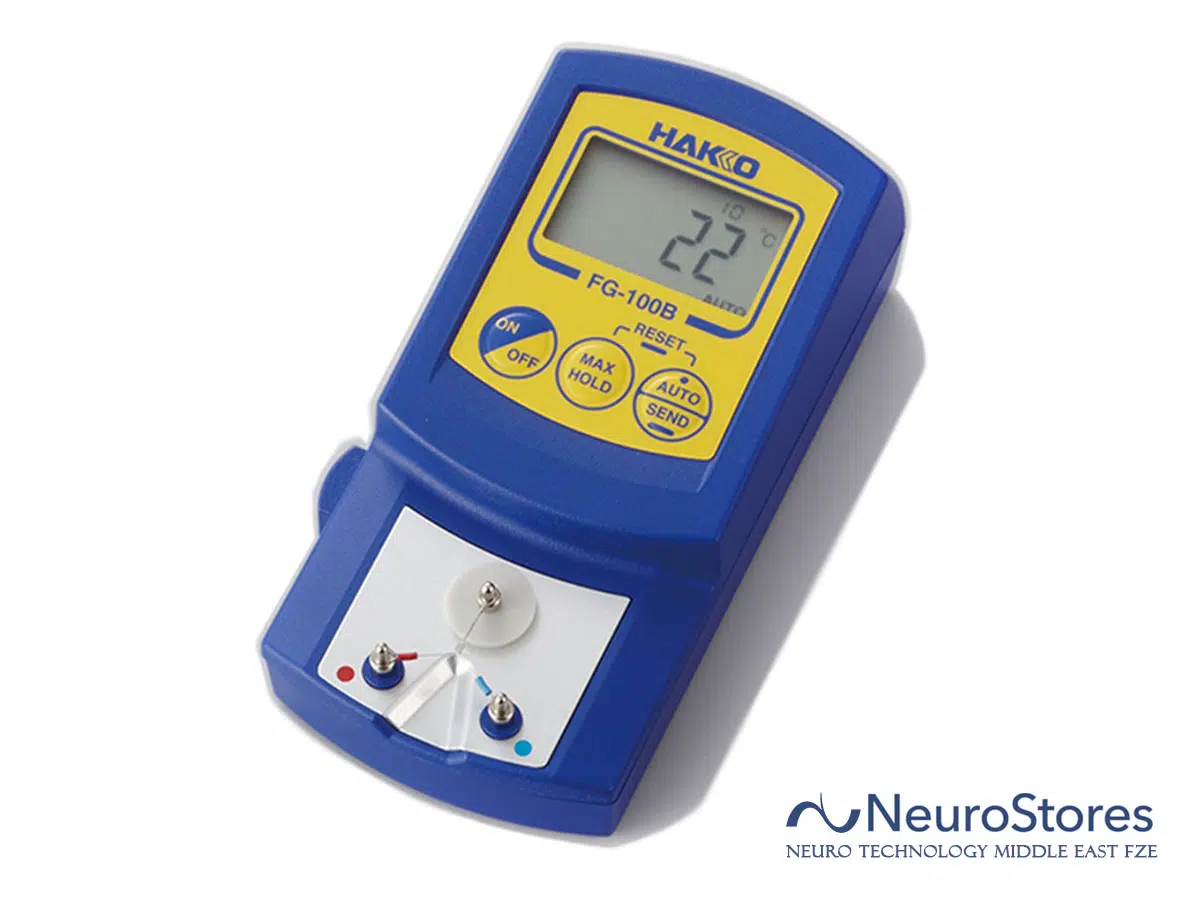

HAKKO CORPORATION
- Automatic measurement to standardize the process
- Automatic temperature measurement
- Measurement counter can be useful for control of changing the sensor.
- Long-life sensor AS5000 (with certificate of conformance) is equipped as standard.
Features
The measurement will end automatically when the tip temperature is stabilized.
The measurement process will be the same no matter who does it.
Max measured tip temperature will be displayed.
This function can be useful for quality control of components and P.W.B.
Measurement result by AUTO HOLD function or MAX HOLD function can be sent to a soldering station (FN-1010) through infrared.
This function can eliminate the manual process of recording results, the time for the process, and human error.
* Image photo below
AUTO HOLD function and MAX HOLD function cannot be used at the same time.
The number of tip temperature measurement will be automatically counted.
This function can be useful for control of changing the sensor.
The power will automatically be shut off after 3 minutes of no use.
It can save battery power and time for changing the battery.
・Suitable for Lead-Free Solder
・Disposable sensor always maintains accurate temperature measurement
(Replace sensor when the measuring point underwent degradation)
・Allows you to measure from any desired direction according to tip shape
* Design image only
For soldering pot
No.A1310
For hot air station
No.C1541
Initial display (room temperature) appearing when the power is turned ON
It is not necessary to deduct the room temperature that was displayed when the power was turned ON from the measured temperature. The temperature appearing on the LED display is the actual measured value.
Guaranteed temperature range with the measurement tolerance of ±3°C
In general, the optimal temperature range for soldering is 300°C to 500°C, and that for SMD rework system is 300°C to 600°C. The tolerance of ±3°C within the optimal temperature range (300°C to 600°C) is assured. For the temperature range other than the above, the tolerance is not guaranteed but usually stays in the range of about ±5°C.
| Model No. | FG100B-04 |
|---|---|
| Power supply | 006P 9V dry battery (alkaline cell recommended) |
| Temperature resolution | 1ºC |
| Temperature measurement range | 0 to 700ºC |
| Temperature precision | ±3ºC (300 to 600ºC) ±5ºC (other than above) |
| Temperature sensor | K (CA)type thermocouple |
| Display | LCD : 3 1/2digits |
| Operating environment | Ambient temperature/Humidity range : 0 to 40ºC, max.80% RH (without condensation) |
| Environmental conditions | Applicable rated pollution degree 2 (According to IEC/UL 61010-1) |
| Dimensions | 75(W)×44(H)×140(D) mm |
| Weight | 125g |
* Dimensions : excluding protrusions
* Weight (excluding battery)
* Temperature sensor can only be used ti measure temperatures below 500ºC. To measure higher temperatures, use an applicable temperature probe.
- Unit,
- 006P 9 V dry battery (for trial),
- Sensor (qty 10 ),
- Instruction manual
HAKKO FG-100B should be calibrated regularly as a Tester / Meter.
| Replacement | Part No. | Name | Specifications |
|---|---|---|---|
 | AS5000 | Sensor | lead-free w/cert conformance |
Change-out rate of the sensor
The sensor replacement period is about 50 times per single sensor in general, but this changes depending on the temperature used and the components in the solder and flux.
If you use lead-free solder, the sensor needs to be replaced more frequently.
If the sensor degrades because it is being eaten away by the solder, it will register a low temperature. Even if the sensor is not broken, replace it after about 50 measurements.
Even if the soldering tip has degraded, the temperature will register extremely low. Keep these points in mind and decide on the sensor replacement period.
| Option | Part No. | Name | Specifications |
|---|---|---|---|
 | A1310 | Temperature probe | for soldering bath & pot |
 | C1541 | Temperature probe | hot air |
 | A1556 | Sensor A | |
 | A1557 | Sensor B |
For soldering potNo.A1310
For hot air stationNo.C1541
