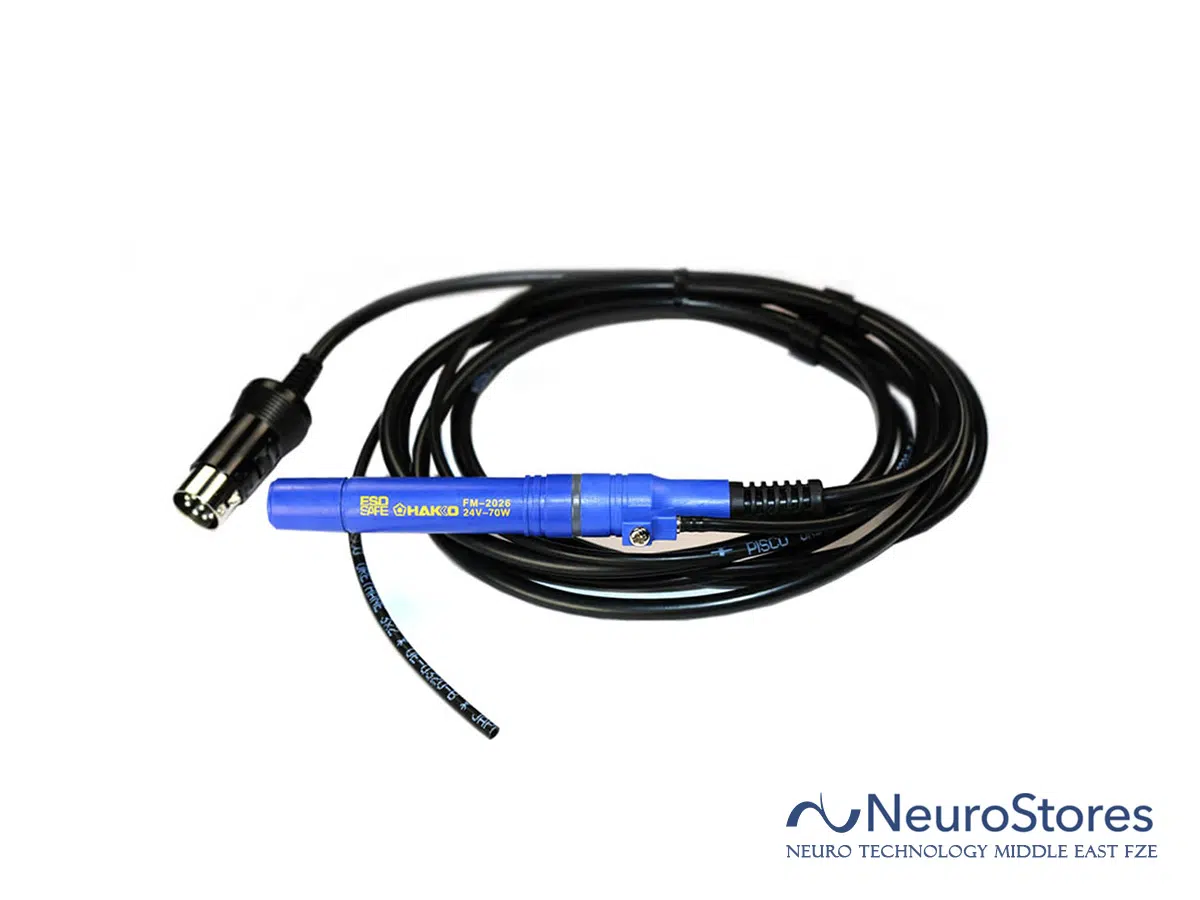

Hakko FM-2026 connector assembly without sleeve and tip.
N2 soldering iron providing 70W high output.
- N2Â soldering iron
- Used together with HAKKO FM-202 (discontinued), FM-203, FM-204, FM-206, FX-950, FX-951 and FX-952
Note: Tips not included
[/vc_column_text]
Features
· The hot N2 gas is effective for preheating.
· Can be used in combination with the HAKKO FX-780 and HAKKO FX-791 to create an N2System.
For one soldering iron
For two soldering irons
| Model No. | FM2026-02 | FM2026-03 | FM2026-04 |
|---|---|---|---|
| Power consumption | 70W (24V) | ||
| Temperature range | 200 to 450ºC | ||
| Tip to ground resistance | <2Ω | ||
| Tip to ground potential | <2mV | ||
| Heating element | Composite heater | ||
| Cord length | 1.2m | ||
| Total length | 205mm (with 2.4D tip) | ||
| Weight | 45g (with 2.4D tip and nozzle assembly C) | ||
* Total length and weight (w/o cord, tube)
* Do not set the temperature over 400ºC.
No. FM2026-02
1. Connector assembly
2. Instruction manual (No figure)
| >> T13 Series Tips: |
|---|
| Shape BCM/CM | |
|---|---|
| T13-BCM2 | Shape-2BC Bevel with indent B2706 Nozzle assembly A |
| T13-BCM3 | Shape-3BC Bevel with indent B2900 Nozzle assembly G |
| Shape BC/C | |
|---|---|
| T13-BC1 | Shape-1BC B2899 Nozzle assembly F |
| T13-BC2 | Shape-2BC B2706 Nozzle assembly A |
| T13-BC3 | Shape-3BC B2900 Nozzle assembly G |
| T13-BCF1 | Shape-1BC Tinned cut surface only B2899 Nozzle assembly F |
| T13-BCF2 | Shape-2BC Tinned cut surface only B2706 Nozzle assembly A |
| T13-BCF3 | Shape-3BC Tinned cut surface only B2900 Nozzle assembly G |
| Shape B | |
|---|---|
| T13-B2 | Shape-0.5B B2708 Nozzle assembly C |
| T13-BL | Shape-BL B2898 Nozzle assembly E |
| Shape D | |
|---|---|
| T13-D08 | Shape-0.8D B2709 Nozzle assembly D |
| T13-D16 | Shape-1.6D B2708 Nozzle assembly C |
| T13-D24 | Shape-2.4D B2708 Nozzle assembly C |
| Shape J | |
|---|---|
| T13-J02 | Shape-0.2J B2707 Nozzle assembly B |
| Shape K | |
|---|---|
| T13-KF | Shape-KF B2923 Nozzle assembly J |
| T13-KR | Shape-KR B2902 Nozzle assembly I |
| T13-KU | Shape-KU B2901 Nozzle assembly H |
