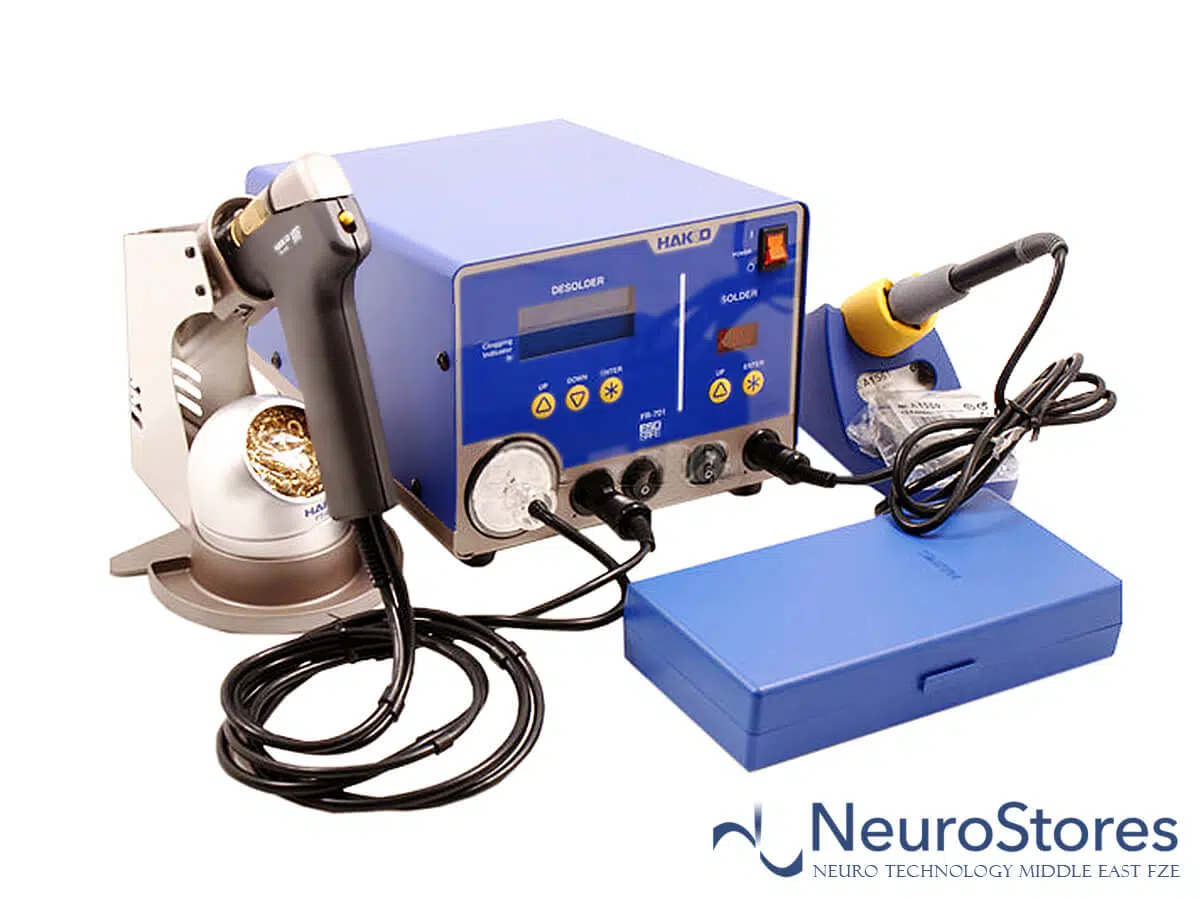

Hakko FR-701 Dual Port Repair Station 260W (220V 50/60Hz)

HAKKO CORPORATION

LEAD FREE ESD SAFE

Dual function repair station with FR-4103, 140W high power desoldering gun, and FX-8801, soldering iron, 2-in-1 unit for space saving

  • Powerful Rework Station
  • Safer and more secure rework operation
  • With upgraded soldering and desoldering tools
  • 2-in-1 unit for space saving
  • Compatible with N2 system by purchasing N2 iron (FX-8802) as an optional accessory

Features

6 applications for a variety of soldering and desoldering works

Besides FR-4103, 140W desoldering gun, and FX-8801, soldering iron, 4 more applications are compatible with FR-701.
Tips (T18 and T19 series) and nozzles (N61 series) deliver excellent cost efficiency.

High-power Desoldering gun HAKKO FR-4103

Increasing the power to 140 W from 50 W of our previous models (HAKKO 474・475), it can make it easy to desolder on multi-layer PWB which was never an easy job, and it can also shorten the process time.
A wide selection of nozzle, with the addition of new types, is available for a variety of desoldering works.
– Long type nozzles for narrow space
– Oval shape nozzles for flat terminals
– SS type nozzles for micro land-patterns
High-power Desoldering gun HAKKO FR-4103

>>>Click here for more information about HAKKO FR-410.

Soldering iron HAKKO FX-8801/FX-8805

Thermal conductivity has been increased by reviewing external configuration and internal structure of 900 tip series.
Now T18 and T19 tip series are selectable depend on work environment.

>>> Click here for more information about HAKKO FX-8801/FX-8805

N2 soldering iron HAKKO FX-8802

The N2 gas runs into the nozzle assembly and covers over the soldering tip. It prevents the soldering tip and the heater from being readily oxidized and performs great role as a preheating.
Two effects of N2 system, preventing oxidation or preheating effect, can improve soldering defects such as bridging, protrusion icicle, insufficient solder filling in PTH, etc.
T18 tips series are compatible with this application.N2 soldering iron HAKKO FX-8802

>>>Click here for more information about HAKKO FX-8802.

N2 system required equipments:

For one soldering iron

For two soldering irons

For high concentration and large flow of N2 gas like auto soldering unit

set exampleSpace-saving set sample with with HAKKO FX-951 and
HAKKO FX-780 Footprint of the equipments above: 163(W) ×280(H) ×110(D) mm

One-hand Manual-solder-feed iron HAKKO FX-8803

– Solder and feed with one hand
– Feed a set amount of solder with one hand
– Manual feed system is perfect for cellular manufacturing.
– Soldering work can be conducted at the pace of the operator.
– T18 tips series are compatible with this application.One-hand Mnual-solder-feed iron HAKKO FX-8803

SMD Hot Tweezer HAKKO FX-8804

– Direct heating—less influence upon surrounding components on crowded boards.
– Easily removes SMD chips and flat packages up to 25mm.
– The collet allows easy replacement and alignment of the tips.SMD Hot Tweezer HAKKO FX-8804

Specifications

Model No.FR701-10
Power consumption260W

Station
Dimensions190(W)×140(H)×220(D)mm
Weight6.2kg

Station (Soldering)
Output voltageAC 26V
Temperature range50 to 480ºC
Temperature stability±1ºC at idle temperature (When set to 200 to 480ºC)

Station (Desoldering)
Output voltageAC 24V
Vacuum generatorVacuum pump, double cylinder type
Vacuum pressure80kPa (600mmHg)
Suction flow15L/min.
Temperature range330 to 450ºC
Temperature stability±5ºC at idle temperature

Soldering iron
Power consumption65W (26V)
Tip to ground resistance<2Ω
Tip to ground potential<2mV
Heating elementCeramic heater
Standard tipShape-B (No.T18-B)
Cord length1.2m
Total length222mm (with B tip)
Weight52g (with B tip)

Desoldering Gun
Power consumption140W (24V)
Nozzle to ground resistance<2Ω
Nozzle to ground potential<2mV
Heating elementComposite heater
Standard nozzleΦ1.0mm S type (No.N61-05)
Cord length1.2m
Total length168mm (with Φ1.0mm S type nozzle)
Weight170g (with Φ1.0mm S type nozzle)

* The suction flow is measured at the filter case suction port of station.
* Total length and weight (w/o cord, hose)

Packing List

Packing List1. Station
2. Soldering iron (FX-8801),
3. Desoldering gun (FR-4103),
4. Iron holder for soldering gun (with cleaning wire),
5. Iron holder for desoldering iron (with cleaning sponge, cleaning wire),
6. Tool box (Cleaning pin for ø1.0 mm, Cleaning pin for heater, Cleaning drill for ø1.0 mm, Nozzle wrench, Filter [qty 2], Ceramic paper filter [qty 4]),
7. Power cord,
8. Instruction manual

Soldering Tips/Nozzles

T18 Series Soldering Tips for FX-8801(65W):
Shape BC/C
T18-C05Shape-0.5C 0.5 x 13.5mm
T18-C08Shape-0.8C 0.8 x 15.5mm
T18-C1Shape-1C 1 x 13.5mm
T18-C2Shape-2C 2 x 14.5mm
T18-C3Shape-3C 3 x 14.5mm
T18-C4Shape-4C 4 x 14.5mm
T18-C5Shape-5C 5 x 14.5mm
T18-CF1Shape-1C 1 x 13.5mm

Tinned cut surface only
T18-CF15Shape-1.5C 1.5 x 13.5mm

Tinned cut surface only
T18-CF2Shape-2C 2 x 14.5mm

Tinned cut surface only
T18-CF3Shape-3C 3 x 14.5mm

Tinned cut surface only
T18-CF4Shape-4C 4 x 14.5mm

Tinned cut surface only
T18-CSF25Shape-2.5CS 2.5 x 10mm

This type has good
heat transfer with short tip end design,
tinned cut surface only.
T18-S6Shape-S6 1.3 x 16.5mm
T19 Series Soldering Tips for FX-8805(65W):
Shape BC/C
T19-C3Shape-3C 3 x 18.5mm
T19-C4Shape-4C 4 x 18.5mm
T19-C65Shape-6.5C 6.5 x 15.5mm
N61 Series Nozzles:
SS type:
N61-01Size Φ0.6mm
N61-02Size Φ0.8mm
N61-03Size Φ1.0mm
S type:
N61-04Size Φ0.8mm
N61-05Size Φ1.0mm
N61-06Size Φ1.3mm
Standard type:
N61-07Size Φ0.8mm
N61-08Size Φ1.0mm
N61-09Size Φ1.3mm
N61-10Size Φ1.6mm
Long type:
N61-11Size Φ0.8mm
N61-12Size Φ1.0mm
N61-13Size Φ1.3mm
N61-14Size Φ1.6mm
Oval type:
N61-15Size 3×1 mm
N61-16Size 4×1 mm

Replacement Parts / Option

>> Click here for Replacement Parts and Option.
